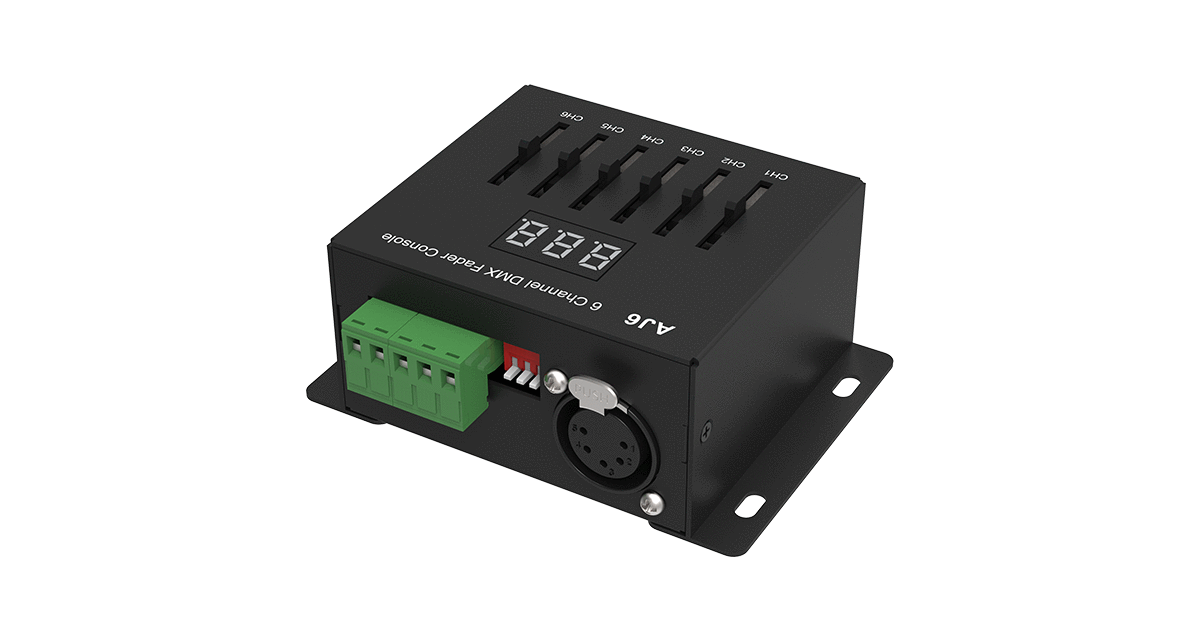

AJ6 6-Channel DMX Master Controller | DMX512 LED Control Panel

Overview

The AJ6 is a professional 6-channel DMX512 master controller designed for multi-channel LED lighting systems such as RGB, RGBW, CCT, and 6-channel fixture configurations. With stable DMX output, smooth dimming performance and multiple scene modes, the AJ6 provides precise lighting control for architectural, commercial, and entertainment spaces. It supports 12–36V DC constant voltage input and includes advanced tuning, programming, and control features for high-end installations.

Key Features

• 6-channel DMX512 master controller for professional LED lighting systems
• Ideal for RGB, RGBW, CCT and 6-channel LED fixtures
• Stable DMX output ensures smooth, flicker-free dimming
• Supports both linear and logarithmic dimming curves
• 12–36V DC constant voltage input
• Scene control with multiple programmable lighting modes
• Independent 6-channel control with adjustable DMX addresses
• High PWM resolution for smooth 0–100% brightness adjustment
• DMX address selection and configuration via onboard settings
• Compatible with DMX decoders, amplifiers, dimmers and smart controllers
• Compact and durable design for easy installation in cabinets or wall boxes

Technical Notes

• The AJ6 outputs DMX512 signals and requires DMX decoders or fixtures to operate LED loads.
• 6 channels allow control of RGB, RGBW, CCT or custom multi-channel LED setups.
• DMX addresses are fully configurable to match system design.
• Smooth dimming performance is achieved using high-resolution PWM control.
• Can be paired with DMX amplifiers (boosters) for long-distance DMX installations.
• Memory function restores the previous scene after power restoration.
• Supports both constant voltage and constant current DMX decoder systems.

Wiring & Installation Notes

• Connect 12–36V DC input to the power terminals (observe polarity).
• Connect DMX output to DMX decoders or DMX-enabled LED fixtures.
• Ensure proper DMX wiring using twisted-pair signal cable (e.g., DMX512 standard cable).
• Use the last-fixture DMX terminator (120Ω) for correct signal integrity.
• Set DMX addresses according to your installation scheme.
• Install in a well-ventilated, dry indoor environment (IP20).
• Follow standard DMX512 wiring conventions: Data+, Data–, GND.
• DMX daisy-chain topology is recommended for stable installations.

Applications

• RGB, RGBW and multi-channel LED strip systems
• CCT (dual-white) LED lighting control
• Professional architectural lighting projects
• Entertainment & stage lighting
• Clubs, lounges, bars and event venues
• Commercial and hotel lighting requiring DMX512 control
• Large-scale façade or interior color-changing systems

Technical Specifications

Parameter	Specification
Model	AJ6 6-Channel DMX Master Controller
Input Voltage	12–36V DC
DMX Output Channels	6 channels DMX512
Control Protocol	DMX512 (standard)
Dimming Range	0–100% smooth dimming
Dimming Curve	Linear or logarithmic
Signal Output	DMX512 digital signal
Scene Memory	Yes, auto restore after power on
Installation	Cabinet, junction box or control panel mount
Operating Temperature	–20°C to +50°C
IP Rating	IP20 (indoor)
Dimensions	Varies by housing version (standard compact size)
Warranty	5 years
