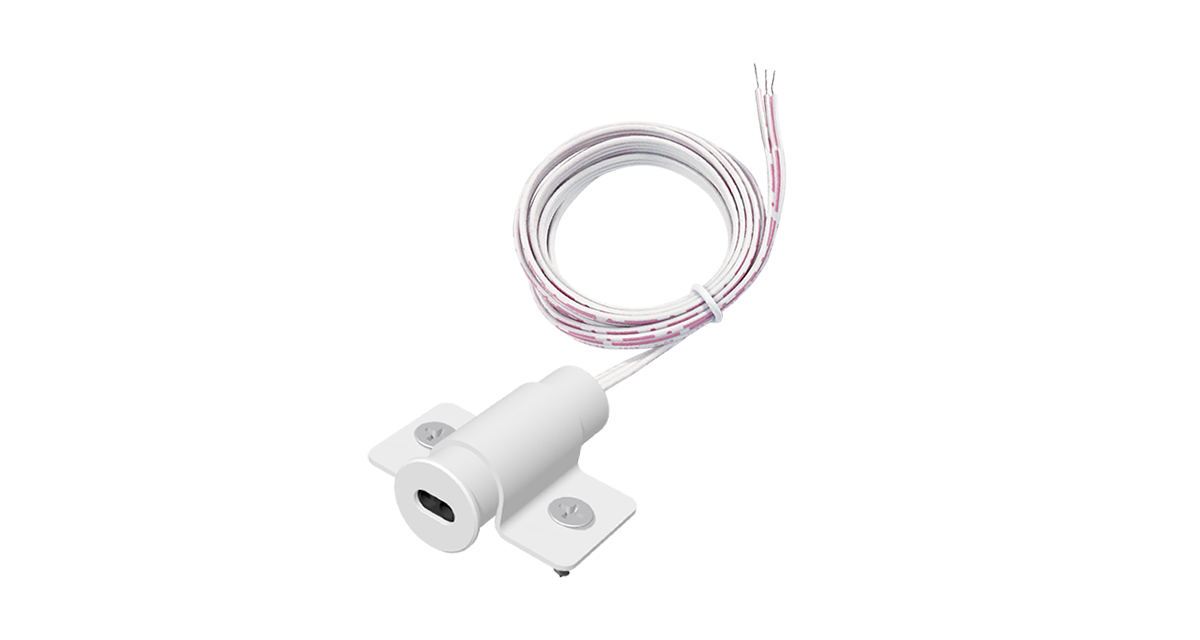

EB-V(C) Door Sensor Switch | 12–24V LED Cabinet Controller

Overview

The EB-V(C) is a magnetic door sensor switch designed for 12–24V DC LED lighting in cabinets, wardrobes, closets and custom furniture. When the door opens, the light turns ON automatically; when the door closes, the light turns OFF. With a 3A load capacity, it supports longer or brighter LED strip runs, making it ideal for premium cabinet lighting solutions.

Key Features

• Automatic ON/OFF LED switching based on door position
• Magnetic proximity sensor for reliable operation
• Supports 12–24V DC LED lighting systems
• 3A output capacity for larger LED loads
• Ideal for closets, wardrobes, kitchen cabinets and drawers
• Hands-free activation for a clean and modern user experience
• Simple inline installation
• Safe low-voltage operation
• Compact design suitable for furniture integration

Technical Notes

• Acts as an inline switch, not a power supply.
• Compatible with 12–24V LED strips or LED modules.
• Light turns ON when the magnet separates from the sensor.
• Light turns OFF when the magnet aligns with the sensor.
• Ensure the magnet is aligned correctly for reliable switching.
• Do not exceed 3A load capacity.

Wiring & Installation Notes

• Connect DC power (12–24V) to the controller input terminals.
• Connect LED strip or LED module to the output terminals.
• Mount the sensor inside the cabinet frame.
• Mount the magnet on the door so they align when closed.
• Ensure appropriate spacing for proper detection.
• Indoor use only (IP20 rating).
• Use correct wire gauge according to the 3A load.

Applications

• Wardrobe and closet lighting
• Kitchen cabinet lighting
• Cupboards and drawers
• Showcase and display cabinets
• Furniture and under-shelf lighting
• Shoe cabinets and storage spaces

Technical Specifications

Parameter	Specification
Model	EB-V(C)
Input Voltage	12–24V DC
Output Current	3A max
Switch Type	Magnetic proximity sensor
Function	ON when door opens, OFF when door closes
Installation	Cabinet / furniture surface mount
Environment	Indoor, dry use (IP20)
Material	Plastic housing + magnetic trigger
Warranty	1–3 years
