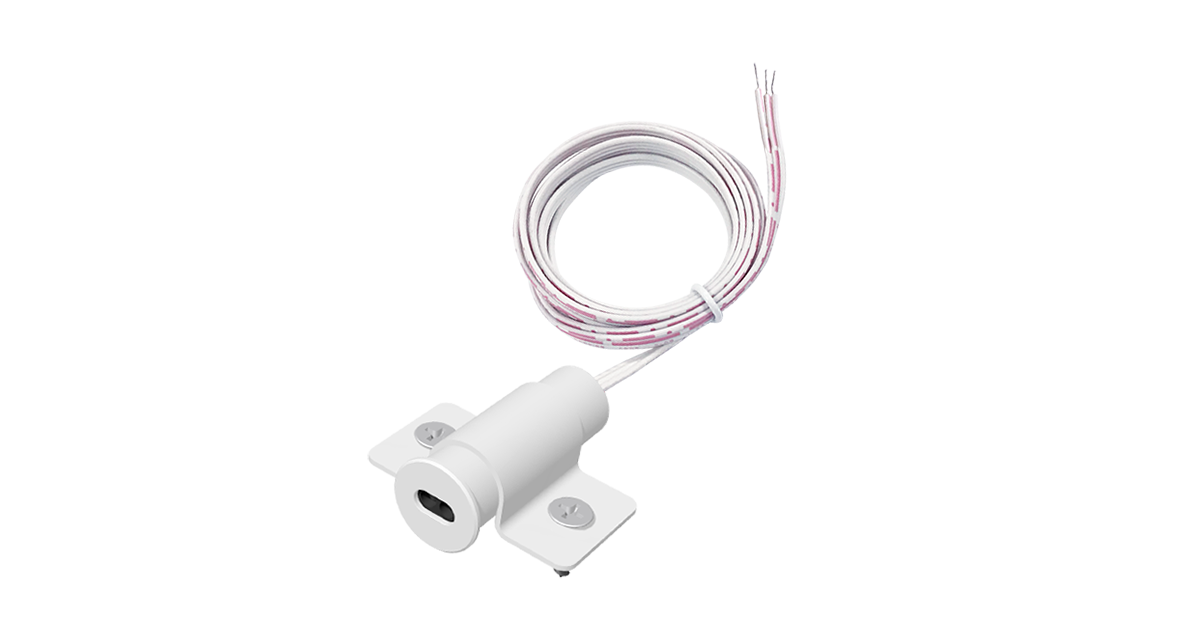

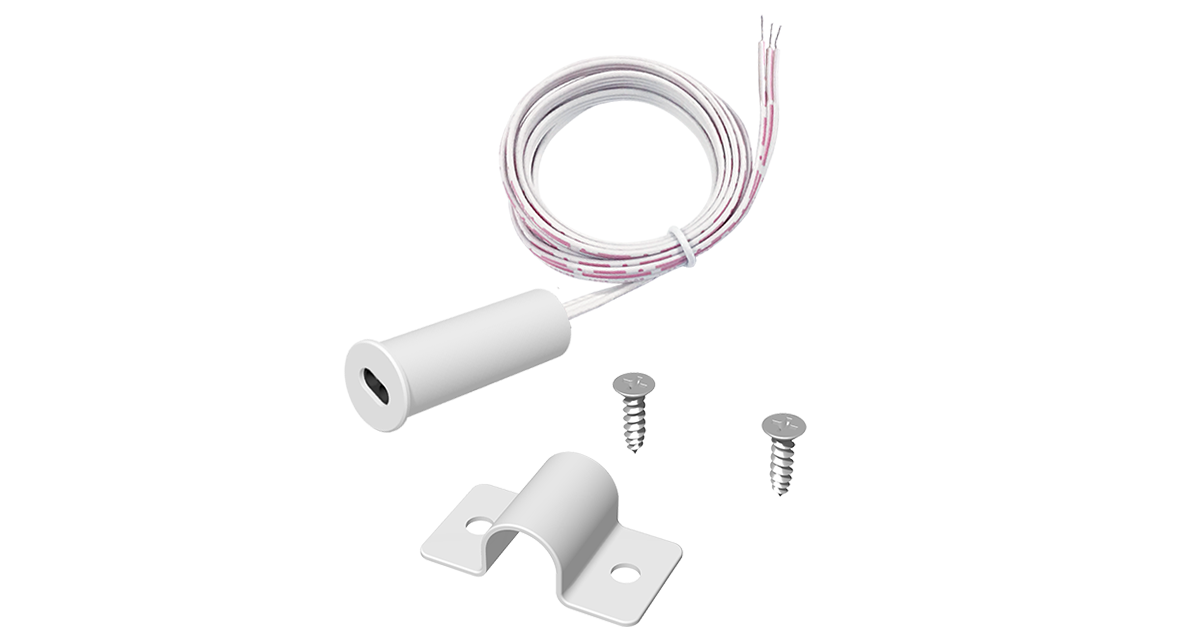

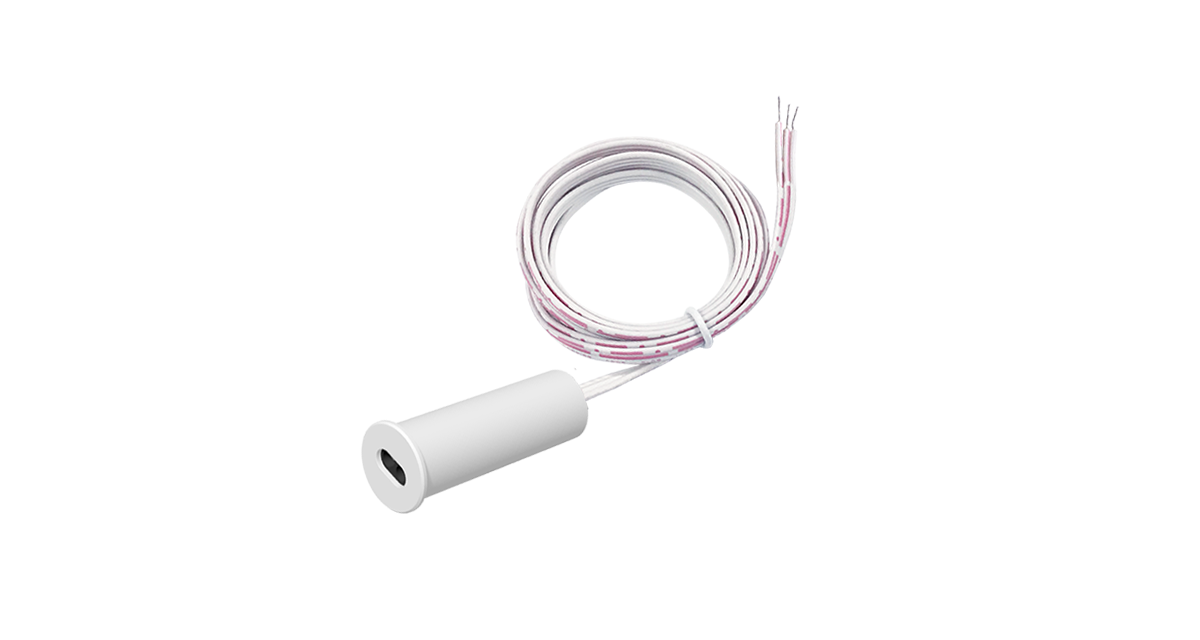

ED-V(C) Door Sensor Switch | 12–24V DC 1A LED Cabinet Controller

Overview

The ED-V(C) is a compact magnetic door sensor switch designed for 12–24V DC LED lighting inside cabinets, closets, wardrobes and furniture installations. When the door opens, the sensor automatically switches the LED light on; when the door closes, the light turns off. This creates a clean, hands-free and energy-efficient lighting experience ideal for modern cabinetry and custom furniture projects.

Key Features

• Automatic ON/OFF LED control based on door position
• Magnetic proximity sensor for fast and accurate switching
• Supports 12–24V DC LED lighting systems
• 1A output current for cabinet and wardrobe LED strips
• Ideal for closets, kitchen cabinets, wardrobes and storage areas
• Compact size for easy embedding inside furniture structures
• Safe low-voltage operation for furniture lighting
• Energy-saving: lights only turn on when needed
• Simple wiring and installation

Technical Notes

• The ED-V(C) acts as an inline switch, not a power supply.
• Suitable for LED strips or LED modules operating at 12–24V DC.
• When the magnet separates from the sensor (door opens), the load switches ON.
• When the magnet touches or approaches the sensor (door closes), the load switches OFF.
• Ensure the sensor and magnet are aligned for correct operation.
• Not designed for high-current LED loads above 1A.

Wiring & Installation Notes

• Connect 12–24V DC input (from driver) to the controller input terminals.
• Connect LED strip or LED module to the output terminals.
• Mount the sensor body inside the cabinet frame.
• Mount the magnet on the door so it aligns with the sensor when closed.
• Maintain proper magnet distance for reliable switching.
• Use only for indoor, dry locations (IP20).
• Do not exceed 1A load to avoid damage.

Applications

• Wardrobe and closet lighting
• Kitchen cabinet lighting
• Cupboards and drawers
• Showcase or display lighting
• Under-shelf and furniture lighting
• Storage rooms and small enclosures

Technical Specifications

Parameter	Specification
Model	ED-V(C) Door Sensor Switch
Input Voltage	12–24V DC
Output Current	1A max
Switch Type	Magnetic proximity (door sensor)
Function	Light ON when door opens, OFF when door closes
Installation	Cabinet / furniture surface mount
Operating Environment	Indoor, dry (IP20)
Material	Plastic sensor body + magnetic trigger
Warranty	1–3 years (depending on batch)
