EV4-X 4-Channel Power Repeater | DC Constant Voltage LED Amplifier

Overview

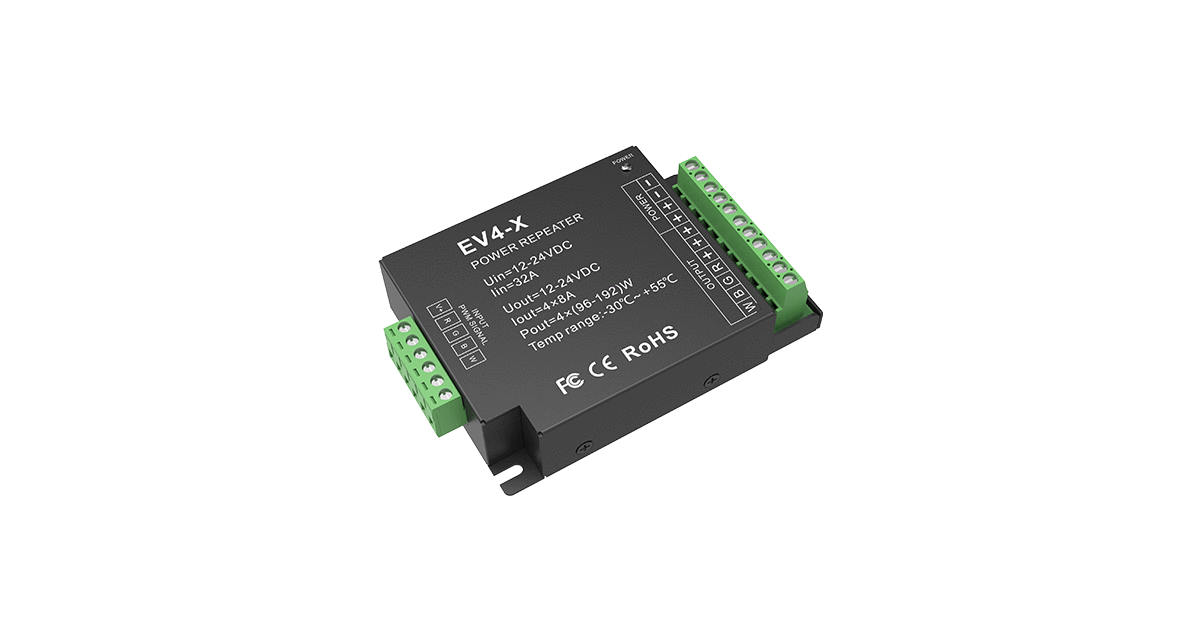

The EV4-X is a 4-channel DC constant voltage power repeater designed to extend the output capacity of PWM-based LED controllers. It reproduces the incoming PWM signal across four high-current output channels, ensuring synchronized dimming and color performance throughout large or multi-section LED installations. Supporting 12–48V DC input and up to 4×5A output, the EV4-X is suitable for RGB, RGBW and other multi-channel constant voltage LED setups.

Key Features

• 4-channel constant voltage power repeater for LED PWM systems
• Ideal for RGB, RGBW and multi-channel constant voltage LED strips
• 12–48V DC wide input voltage range
• High output capacity: up to 5A per channel (20A total)
• Repeats and amplifies PWM dimming signals from any compatible LED controller
• Ensures synchronized brightness and color performance across extended installations
• Supports large and high-power LED strip applications
• Short-circuit, overload and over-temperature protection
• Simple wiring with secure screw terminals
• Durable metal casing for effective heat dissipation

Technical Notes

• The EV4-X does not generate its own dimming signal; it follows the PWM signal from a master controller.
• Provides four identical PWM outputs, suitable for RGBW or 4 independent single-color channels.
• Multiple EV4-X units can be cascaded for large-scale installations.
• LED load voltage must match the DC input voltage applied to the EV4-X.
• The device is not a power supply; use a regulated constant voltage LED driver.
• Maintains identical dimming curves, flicker performance and color mixing as the master device.
• Balanced load distribution across channels is recommended for RGBW systems.

Wiring & Installation Notes

• Connect the input power supply (12–48V DC) to the V+ and V– input terminals.
• Connect LED strip loads to the channel outputs (CH1–CH4).
• Connect the PWM signal wires from the master controller to the EV4-X signal input terminals.
• Ensure common ground (V–) between the repeater, LED controller and power supply.
• Mount in a dry, indoor environment (IP20 rating) with adequate ventilation.
• Do not exceed 5A per channel or 20A total output current.
• Maintain proper polarity to avoid damage to LED strips or the repeater.
• Follow local electrical regulations during installation.

Applications

• Large RGB and RGBW LED strip installations
• Multi-room or long-run LED lighting systems
• Architectural linear lighting requiring high power
• Commercial and hospitality lighting expansion
• Outdoor façade LED projects using constant voltage strips
• Any PWM-controlled LED system needing extended output capacity

Technical Specifications
