In-Ground DMX512 RGBW Linear LED Wall Washer – IP67 (24V)

Overview

The In-Ground DMX512 Linear LED Wall Washer is a professional recessed outdoor lighting fixture designed for powerful architectural illumination. Built for high-performance facade and landscape lighting applications, this fixture delivers a clean wall washing effect while remaining discreetly installed into the ground.

Operating on a safe 24V DC low-voltage system, it is ideal for projects requiring advanced lighting control and long-term outdoor durability. With DMX512 signal compatibility, this linear wall washer is perfect for dynamic RGB and RGBW lighting effects in hotels, commercial buildings, gardens, and outdoor walkways.

Designed with a durable metal body, optical lens protection, and an IP67 waterproof rating, this fixture is made to withstand harsh weather conditions, humidity, and outdoor environments commonly found in Lebanon.

Key Features

• Professional in-ground recessed linear LED wall washer
• DMX512 control for dynamic lighting effects
• Low-voltage 24V DC operation for safety and stability
• Available in RGB, RGBW, and RGBCCT color options
• IP67 waterproof rating for outdoor installation
• Multiple beam angles: 8° / 15° / 30° / 45° / 60° / 90° / 120°
• High-quality optical lens for smooth light distribution
• Long lifespan up to 50,000 hours
• Includes 5-pin waterproof connector

Applications

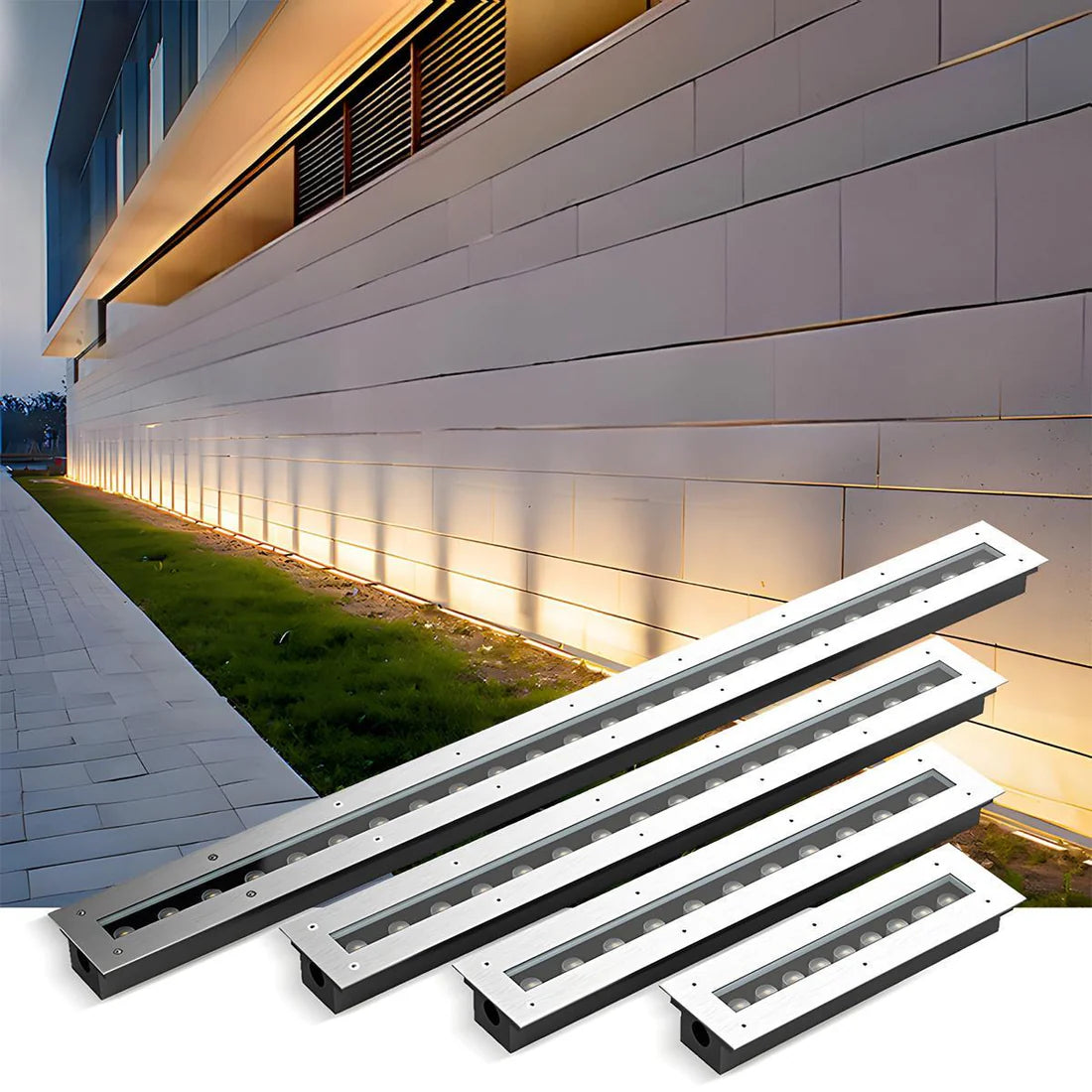

• Facade lighting and wall grazing
• Hotels and commercial building exterior lighting
• Outdoor landscape and garden lighting
• Walkway and pathway illumination
• Architectural lighting projects in Lebanon
• DMX-controlled RGB lighting scenes

Technical Specifications

• Product Type: In-Ground Exterior Linear Recessed LED Wall Washer
• Input Voltage: DC 24V
• LED Type: SMD5050
• Power Options: 18W / 24W / 36W / 48W
• LED Quantity: 18 pcs / 24 pcs / 36 pcs
• Signal: DMX512
• Color Options: RGB / RGBW / RGBCCT
• Beam Angles: 8° / 15° /30° / 45° / 60° / 90° / 120°
• Material: Aluminuml + Optical Lens
• Waterproof Rating: IP67

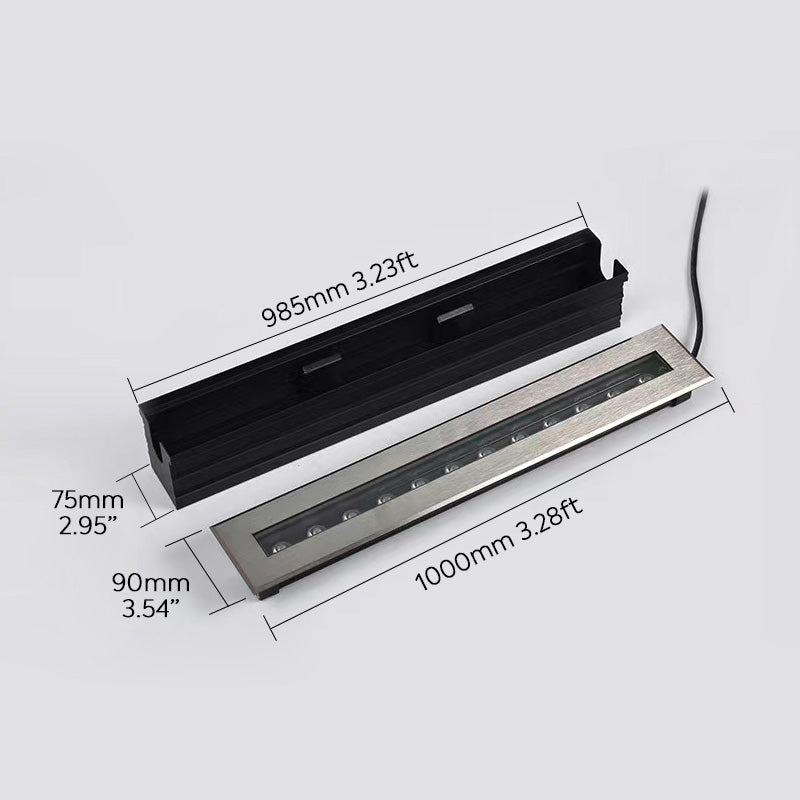

• Fixture Dimensions: L1000mm × W90mm × H75mm
• Cutout / Hole Size: L985mm × W75mm
• Connector: 5-Pin Waterproof Connector
• Lifespan: Up to 50,000 hours

Why Choose This Fixture?

This recessed linear wall washer is a premium solution for lighting designers and contractors who need high durability, clean architectural aesthetics, and full DMX control. It is widely used in modern outdoor lighting installations where reliability and visual impact are essential.

Need Help Choosing the Right Version?

Contact Luminaria Lighting for support in selecting the right wattage, beam angle, and color type for your project in Lebanon.
