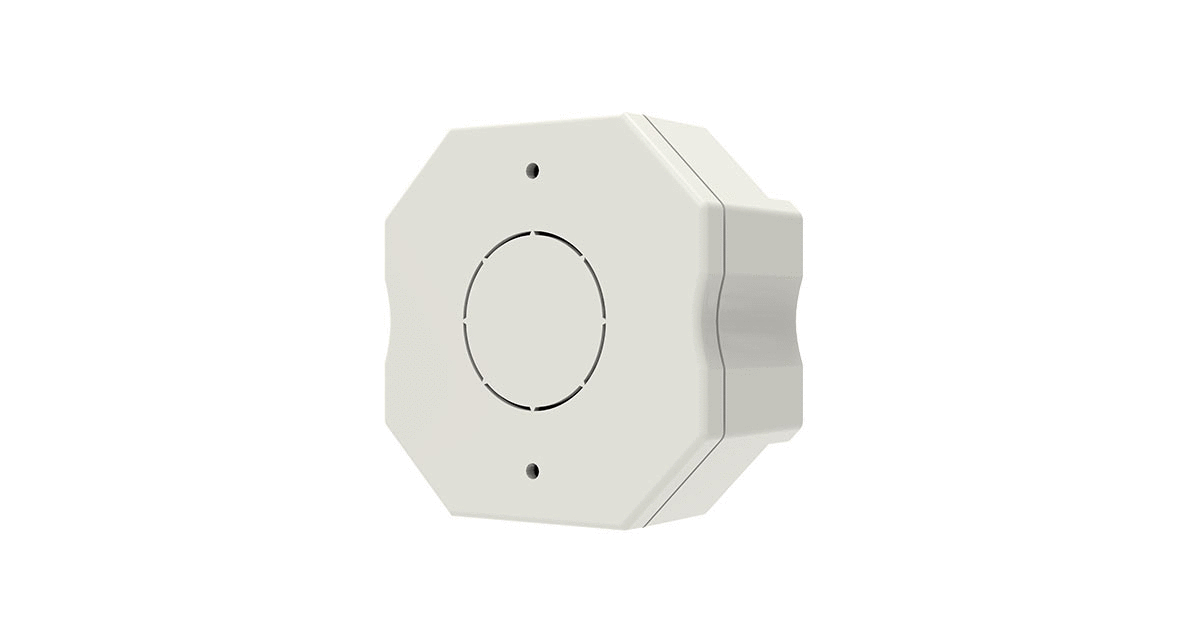

L1 RF to 0/1–10V LED Dimmer | 1-Channel Analog Dimming Receiver

Overview

The L1 RF to 0/1–10V LED Dimmer is a single-channel analog dimming receiver designed to control LED drivers or single-colour LED strips using RF remote signals. It provides both 0–10V/1–10V analog output and PWM constant-voltage output, enabling a wide range of LED dimming applications. With support for 12–48V DC input, Push-Dim local control, 4096-level smooth dimming and high-frequency PWM output, the L1 is ideal for modern residential, commercial and architectural lighting projects.

Key Features

• RF to 0/1–10V analog dimming converter
• 1-channel 0–10V/1–10V analog output + 1-channel PWM LED output
• Compatible with a wide range of RF remotes (single-zone or multi-zone)
• Supports Push-Dim control using a standard momentary switch
• 12–48V DC wide input voltage range
• High output current: up to 15A at 12/24V, 10A at 36/48V
• 4096-level (12-bit) dimming resolution for ultra-smooth 0–100% control
• Select between linear or logarithmic dimming curves
• PWM frequency selectable: 500Hz, 2kHz, 8kHz, or 16kHz
• Short-circuit, over-load and over-temperature protection
• Memory function restores last brightness level after power shutdown
• Compact size suitable for junction boxes, aluminium profiles or control cabinets

Technical Notes

• The L1 outputs both: (1) 0–10V/1–10V analog dimming and (2) PWM constant-voltage LED output.
• Works with 0–10V LED drivers, 1–10V drivers, and CV LED strips via PWM.
• 0–10V output and LED PWM output operate simultaneously and follow the same dimming level.
• 4096 dimming steps ensure smooth lighting transitions suitable for high-end architectural lighting.
• PWM frequency can be increased for flicker-free video recording or studio lighting.
• Push-Dim interface operates independently of RF remote control for local override.
• Memory function preserves last brightness level even after power restoration.
• Multiple receivers can be paired to the same RF remote for synchronized multi-zone control.

Wiring & Installation Notes

• Connect a stable DC power supply (12–48V DC) to the input terminals, observing polarity.
• For LED strip output, connect the load to the PWM LED output terminals (LED+ / LED–).
• For controlling drivers, connect the 0–10V or 1–10V dimming input wires of the LED driver to the analog output.
• Push-Dim input uses a momentary (non-locking) switch between PUSH and GND.
• Use DIP switches to set PWM frequency and dimming curve (linear or logarithmic).
• Ensure total LED load does not exceed 15A @ 12/24V or 10A @ 36/48V.
• Install in a dry indoor location (IP20 rating).
• Maintain ventilation space and avoid tightly enclosed installations.
• Follow all national and local electrical codes during installation.

Applications

• 0–10V or 1–10V dimmable LED driver control
• Single-colour constant-voltage LED strip dimming
• RF wireless dimming for residential lighting
• Commercial office or retail lighting requiring wireless wall or handheld remotes
• Architectural and hospitality lighting with analog dimming
• Upgrading traditional 0–10V lighting systems to wireless control

Technical Specifications

Parameter	Specification
Model	L1 RF to 0/1–10V LED Dimmer
Input Voltage	12–48V DC constant voltage
Analog Output	0–10V / 1–10V dimming output (single channel)
PWM Output	Constant voltage PWM, up to 15A (12/24V) or 10A (36/48V)
Output Power	Up to 480W max depending on voltage
Dimming Range	0–100% (analog & PWM)
Dimming Resolution	4096 steps (12-bit)
PWM Frequency	500Hz / 2kHz / 8kHz / 16kHz (selectable)
Control Interfaces	RF remote, Push-Dim, 0/1–10V
RF Range	Up to approx. 15–20 meters (open area)
Protections	Over-load, short-circuit, over-temperature with auto-recovery
Operating Temperature	–20°C to +50°C
IP Rating	IP20 (indoor)
Dimensions	Approx. 175 × 45 × 30 mm
Warranty	5 years
