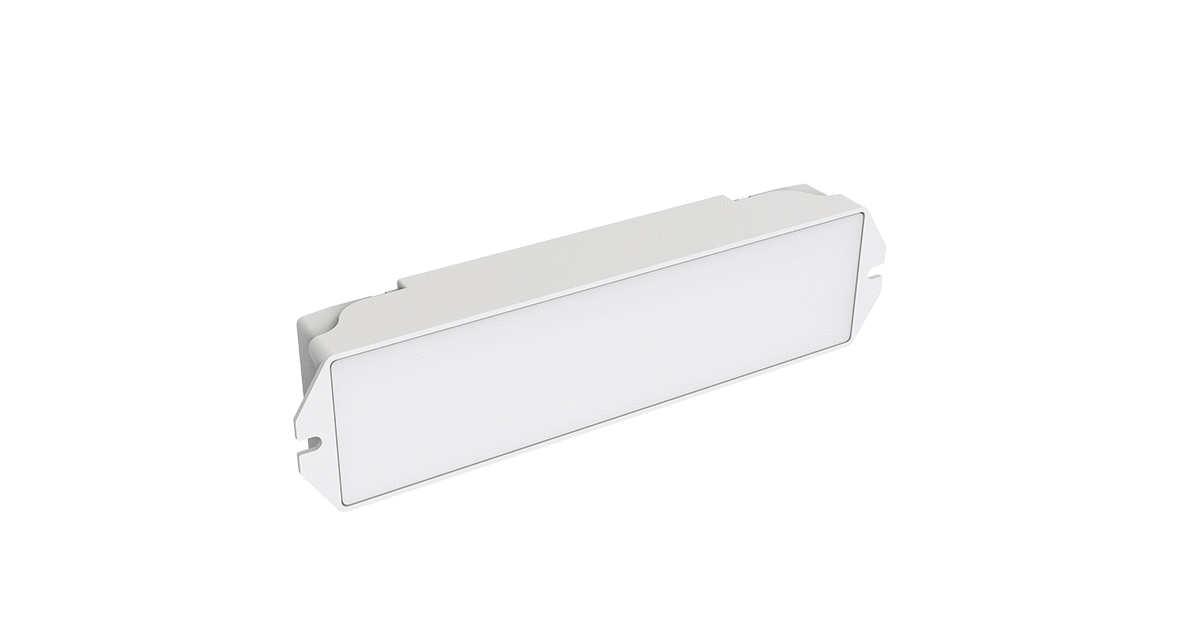

LV-L 0/1–10V LED Dimming Driver | 1-Channel 12–48V 15A Constant Voltage

Overview

The LV-L is a 1-channel 0/1–10V LED dimming driver designed for constant voltage LED strips and single-colour LED luminaires. It combines a 0/1–10V dimming input with a high-current PWM constant voltage output, providing smooth 0–100% brightness control. With selectable logarithmic or linear dimming curves, four PWM frequency options and built-in Push-Dim support, the LV-L is an ideal choice for both new installations and retrofits where professional, flicker-free LED dimming is required.

Key Features

• 1-channel 0/1–10V LED dimming driver with Push-Dim function
• 1-channel 0/1–10V input and 1-channel PWM constant voltage output
• Wide input voltage range: 12–48V DC constant voltage
• High output current up to 15A at 12/24V and 10A at 36/48V
• Output power up to 480W (depending on supply voltage)
• 0–100% dimming range with 4096-level (12-bit) dimming resolution
• Selectable logarithmic or linear dimming curve
• Selectable PWM frequency: 500Hz, 2kHz, 8kHz or 16kHz
• Compatible with active or passive 0–10V and 1–10V dimmers
• Push-Dim interface for simple wall-switch control (short press on/off, long press dimming)
• Over-heat, over-load and short-circuit protection with auto-recovery
• Compact metal housing for easy integration into control panels or junction boxes

Technical Notes

• The LV-L is a constant voltage PWM dimming driver and must be used with 12–48V DC LED strips or constant voltage LED modules.
• Supports 0–10V, 1–10V, 10V PWM and RX (300K–500K) input signals via a 4-in-1 interface.
• 0–100% dimming range is achieved via a logarithmic or linear characteristic selectable by DIP switch.
• 4096 dimming steps (12-bit) provide very fine and comfortable brightness adjustment.
• Four PWM frequency levels (500Hz, 2kHz, 8kHz, 16kHz) allow optimisation between output current, acoustic noise and camera flicker.
• Higher PWM frequencies are more suitable for video recording but will slightly reduce maximum output current.
• Push-Dim allows on/off and stepless dimming using a standard non-latching momentary wall switch.
• Dimming memory ensures the driver returns to the previous brightness level after power off/on, even after mains failure.
• Multiple LV-L units can be synchronised on the same push switch input without additional sync wires, within recommended limits.
• CE, RoHS and FCC compliant, meeting EN IEC 55015, EN IEC 61547, EN 61347-1/-2 and EN 62493 standards.

Wiring & Installation Notes

• Connect a regulated DC power supply (12–48V DC) to the power input terminals observing correct polarity (+ / –).
• Connect the LED strip or constant voltage LED load to the LED output terminals (LED+ / LED–).
• Connect the 0/1–10V signal wires to the 0/1–10V input terminals; the driver accepts active or passive 0–10V or 1–10V dimmer signals.
• For Push-Dim control, connect a non-latching (momentary) wall switch between the PUSH terminal and GND.
• Short press on the push switch toggles the light on/off; long press (1–6 s) dims up or down, alternating direction with each long press.
• Use the DIP switches to select PWM frequency and dimming curve (logarithmic or linear) according to the project requirements.
• Ensure total LED load does not exceed 15A at 12/24V or 10A at 36/48V and the corresponding maximum wattage.
• Recommended maximum number of LED drivers connected to one 0/1–10V or Push-Dim line is 50, with cable lengths not exceeding 50 m.
• Install in a dry, well-ventilated area; do not stack units closer than 20 cm or mount directly next to switching power supplies to avoid overheating and interference.
• All wiring must be performed by qualified personnel in accordance with local electrical standards.

Applications

• Single-colour LED strip dimming (12–48V constant voltage)
• Residential cove, indirect and ambient lighting
• Retail and commercial linear lighting systems
• Office and corridor lighting requiring 0/1–10V dimming
• Retrofit projects using existing 0–10V or 1–10V dimming infrastructures
• Integration into building automation and lighting control systems

Technical Specifications

Parameter	Specification
Model	LV-L 0/1–10V LED Dimming Driver
Input Voltage	12–48V DC constant voltage
Output Voltage	12–48V DC (same as input)
Output Current	15A @ 12/24V, 10A @ 36/48V
Output Power	180W @ 12V, 360W @ 24V, 360W @ 36V, 480W @ 48V
Output Type	Constant voltage PWM dimming
Input Signal	0/1–10V + Push-Dim (0–10V, 1–10V, 10V PWM, RX 4-in-1)
Dimming Range	0–100%
Dimming Gray Scale	4096 levels (12-bit)
Dimming Curve	Logarithmic or linear (selectable by DIP switch)
PWM Frequency	500Hz, 2kHz, 8kHz or 16kHz (selectable)
Control Interfaces	0/1–10V dimming input, Push-Dim input
Protections	Over-heat, over-load, short-circuit with auto-recovery
Operating Temperature (Ta)	–20°C to +55°C
Case Temperature (Tc, Max.)	+85°C
IP Rating	IP20 (indoor use)
Dimensions	L178 × W50 × H38 mm
Gross Weight	Approx. 0.124 kg
Certifications	CE, RoHS, FCC
Warranty	5 years
