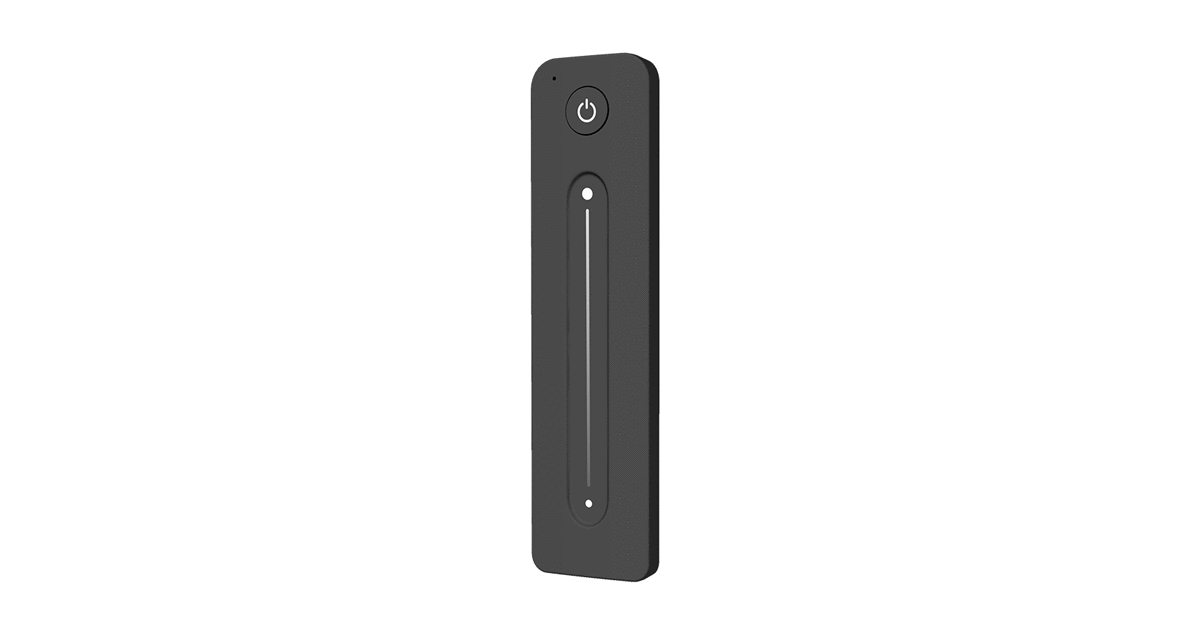

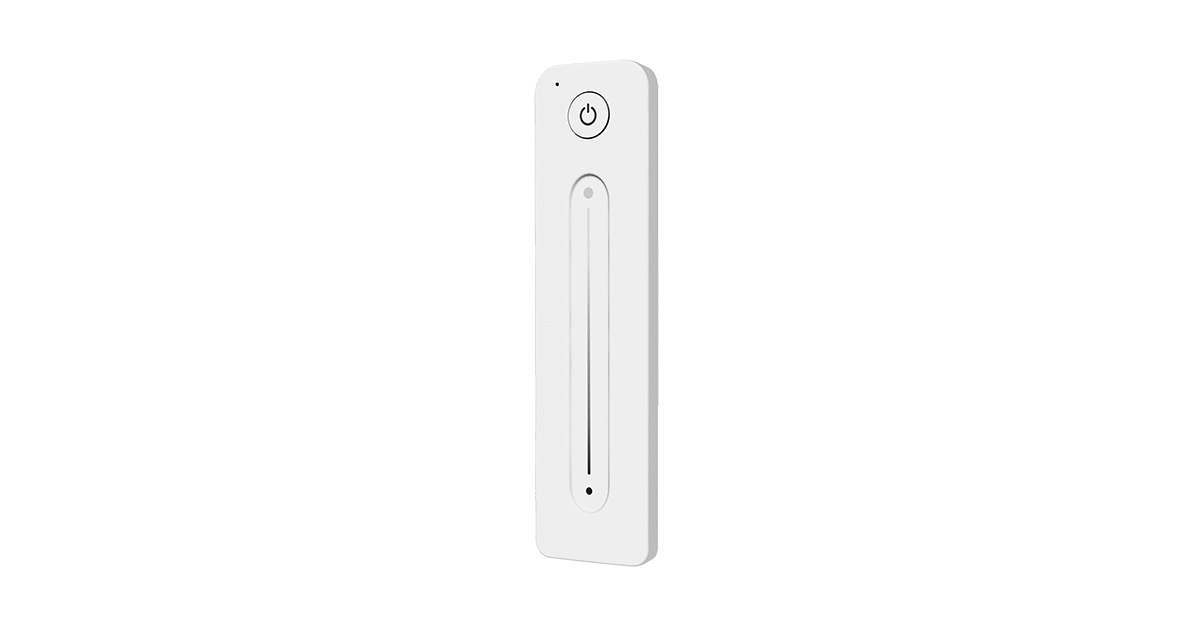

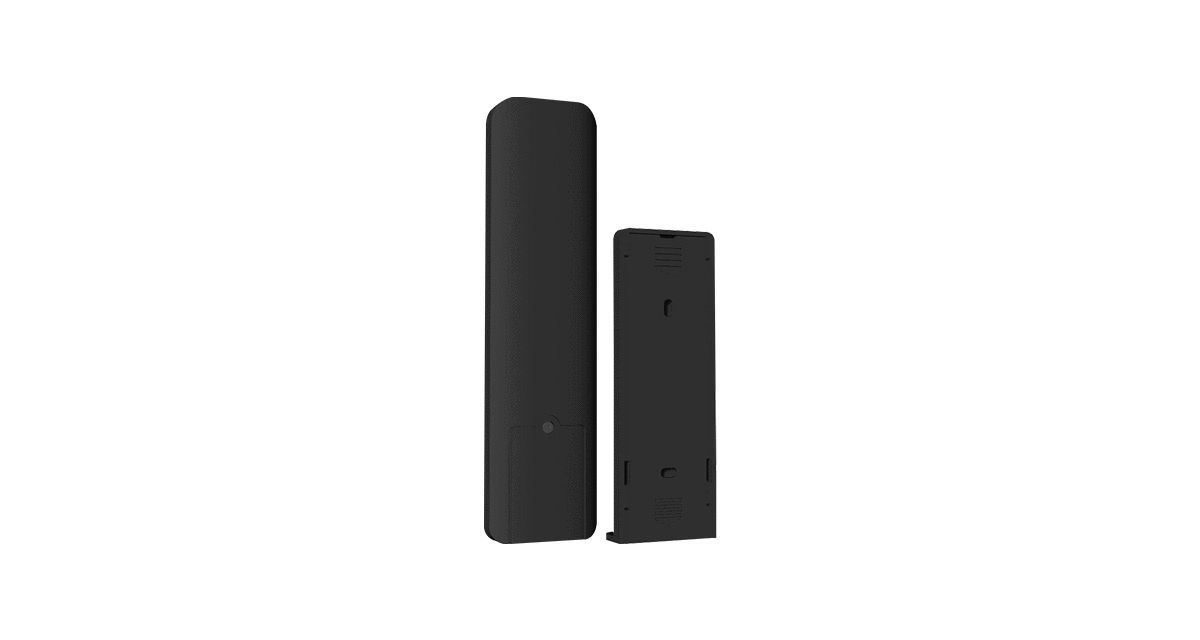

R11 RF LED Dimmer Remote | 1-Zone 2.4G Handheld Controller

Overview

The R11 is a compact 1-zone RF dimmer remote designed to provide wireless brightness control for single-color LED strips. When paired with a compatible RF receiver, it offers smooth dimming, responsive ON/OFF switching, and stable 2.4G wireless communication. Its simple interface and portable design make it ideal for furniture lighting, accent lighting, and small residential or commercial LED setups.

Key Features

• 1-zone handheld RF LED dimmer remote
• 2.4G RF wireless communication
• Smooth 0–100% dimming control
• ON/OFF switching
• Compatible with RF constant-voltage LED receivers
• Long wireless control distance
• Battery-powered for convenience
• Lightweight, compact and easy to use

Technical Notes

• The R11 must be paired with an RF LED dimming receiver.
• Designed for single lighting zone — all paired receivers respond simultaneously.
• Supports smooth dimming via PWM (receiver dependent).
• Uses 2.4G RF for stable, low-interference communication.
• Ultra-low power consumption ensures long battery life.

Pairing & Operation

• Power up the RF receiver and connected LED load.
• Enter the pairing mode on the receiver.
• Press the main button on the R11 to bind.
• Use brightness keys to dim or brighten the LEDs.
• Multiple receivers can be paired to one R11 for unified zone control.

Applications

• Single-zone LED strip dimming
• Cabinet and wardrobe lighting
• Shelf and furniture lighting
• Accent and ambient lighting
• Retail displays and showcases
• Any low-voltage LED system requiring simple RF dimming

Technical Specifications

Parameter	Specification
Model	R11 RF LED Dimmer Remote
Control Zones	1 zone
Communication	2.4G RF wireless
Functions	ON/OFF, brightness dimming
Compatible Devices	RF LED dimmer receivers (single-color LED)
Power Source	Battery powered
Housing	Compact handheld controller
Operating Environment	Indoor use
