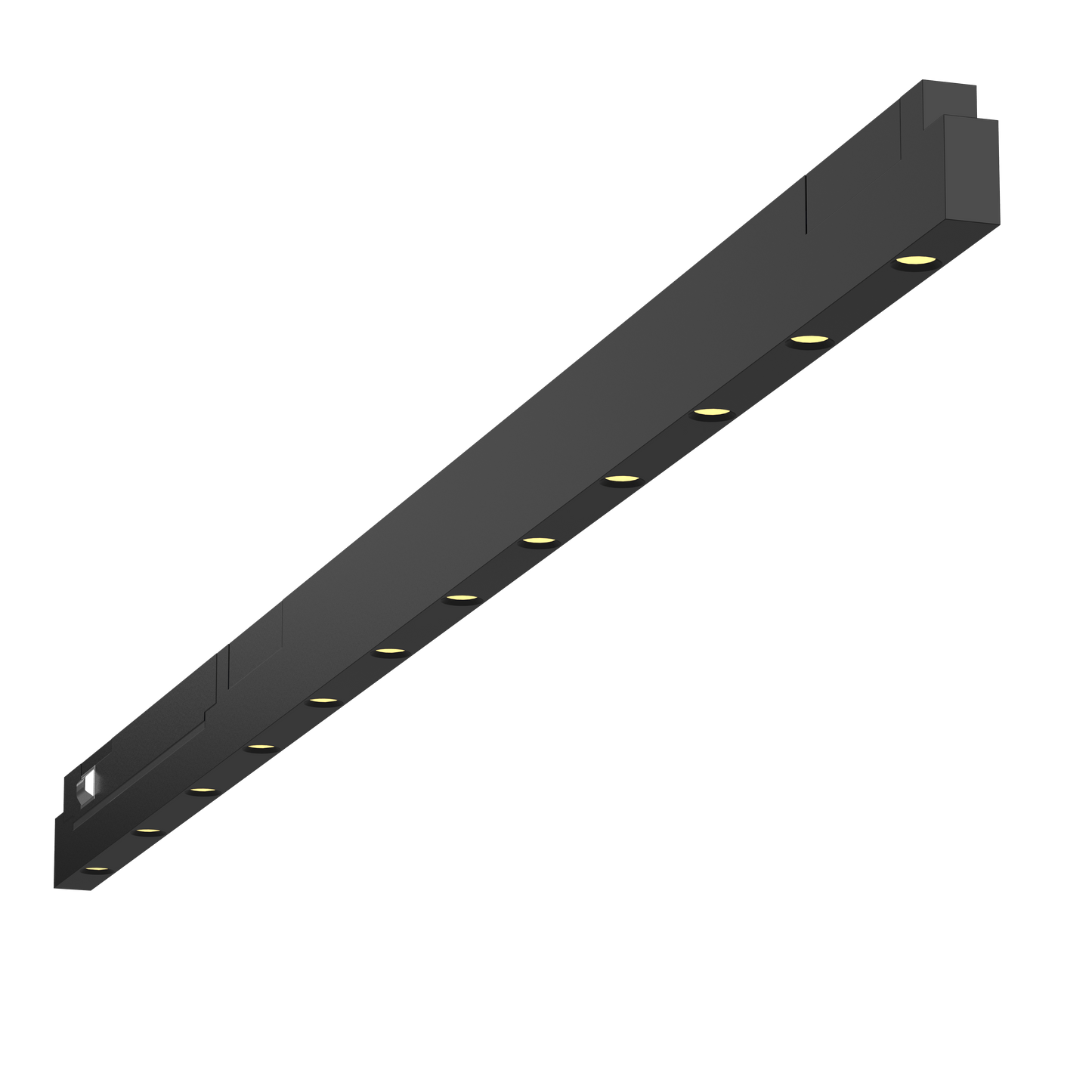

SPS-GL12 – 8W 5mm Magnetic Grille Dot Light (48V)

Overview

The SPS-GL12 is a grille-style dot lighting module designed for 5mm magnetic track lighting systems, delivering controlled and evenly distributed illumination for modern architectural spaces. Operating on a safe 48V low-voltage system, this compact module provides balanced brightness and high visual comfort, making it suitable for both general and accent lighting applications.

Key Features

• Designed for 5mm magnetic track systems
• 48V low-voltage operation for safety and stability
• Grille dot light design for uniform illumination
• High color rendering for accurate color appearance
• Anti-glare structure for enhanced visual comfort
• Tool-free magnetic installation
• Ideal for modular and flexible lighting layouts

Lighting Performance

• Light Distribution: Evenly spaced light dots for balanced illumination
• Light Quality: High CRI ensures natural and consistent colors
• Visual Comfort: Reduced glare for comfortable indoor environments

Technical Notes

• Compatible exclusively with 5mm magnetic track profiles.
• Powered directly through the magnetic track using a 48V DC supply.
• Suitable for indoor installations in dry environments.
• Available with professional lighting control options.

Applications

• Residential living areas and kitchens
• Retail stores and commercial spaces
• Offices and workspaces
• Hotels, cafés and hospitality projects
• Architectural grille lighting
• Modern interior lighting designs

Technical Specifications

Parameter	Specification
Model	SPS-GL12
System Type	5mm Magnetic Track
Input Voltage	48V DC
Power	8W
CRI	Ra90
Beam Angle	60°
Dimensions	300 × 5 × 14 mm
CCT Options	2700K / 3000K / 4000K / 5000K
Finish	Black / White
Control Options	0–10V / TUYA / DALI
Installation	Magnetic snap-in mounting
Application	Indoor lighting
