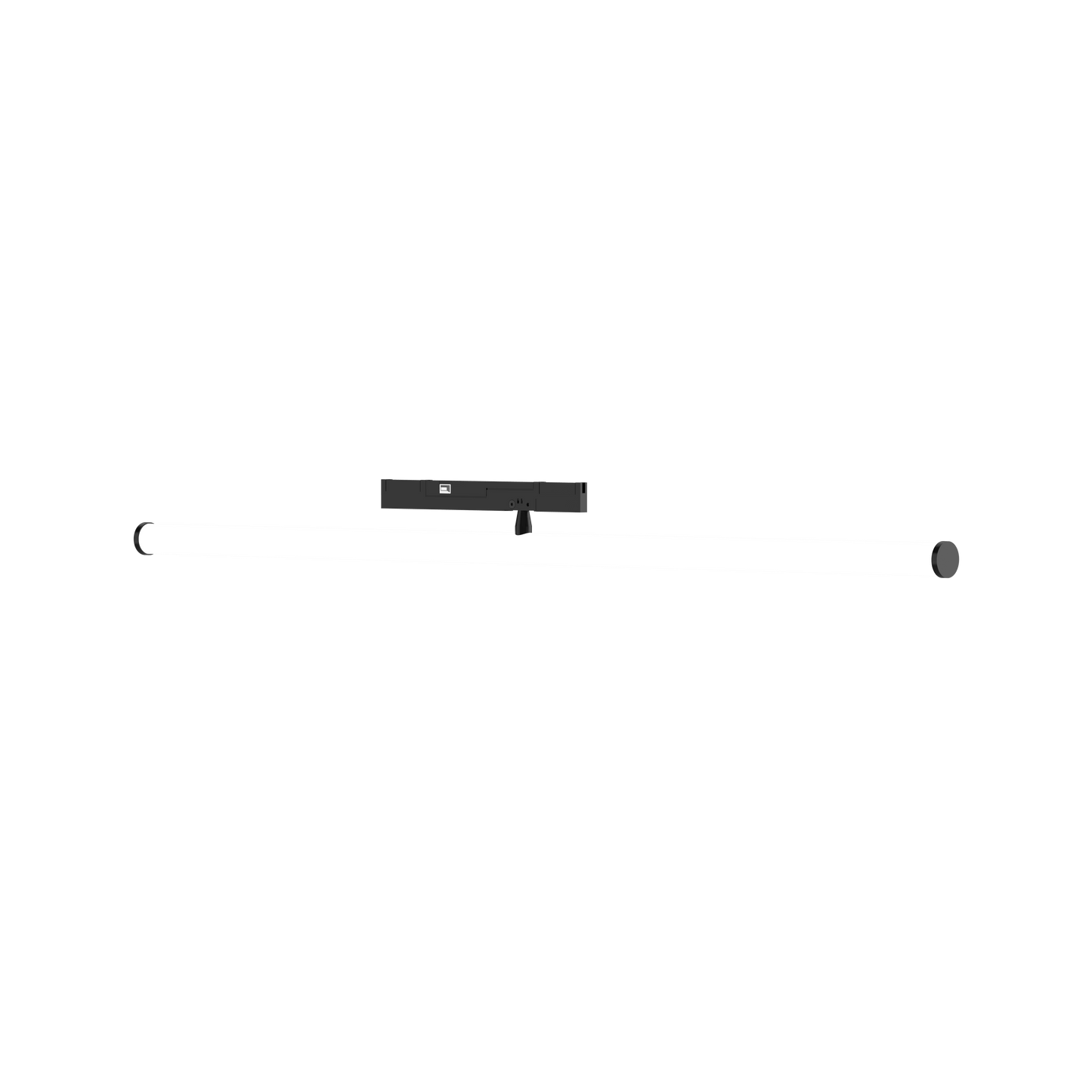

SPS-TB500 – 10W Magnetic Linear Bar Light for 5mm Track (48V)

Overview

The SPS-TB500 is a 10W magnetic linear bar lighting module designed for 5mm magnetic track lighting systems. With a slim and minimal profile, it delivers uniform and comfortable illumination, making it ideal for general and architectural lighting applications in residential and commercial environments. The module operates on a safe 48V low-voltage magnetic system.

Key Features

• 10W magnetic linear bar lighting module
• Designed for 5mm magnetic track systems
• 48V low-voltage operation for safety and stability
• Uniform linear light output
• High color rendering (CRI Ra90)
• Slim and minimal architectural design
• Magnetic snap-in installation

Lighting Performance

• Power: 10W LED output
• Light Quality: Ra90 for natural and accurate colors
• Distribution: Smooth, even linear illumination

System Compatibility

• Track Type: 5mm magnetic track profiles
• System Voltage: 48V DC
• Compatible Tracks: Surface (S5), recessed (R5), flanged recessed (RF5)

Applications

• Residential linear magnetic track lighting
• Retail and showroom illumination
• Offices and commercial interiors
• Hotels, cafés and hospitality projects
• Architectural general lighting

Technical Specifications

Parameter	Specification
Model	SPS-TB500
Product Type	Magnetic linear bar light
Power	10W
CRI	Ra90
System Voltage	48V DC
Product Size	16.5 × 500 × 126 mm
Finish	Black / White
Control Options	0–10V / TUYA / DALI
Application	Indoor lighting
