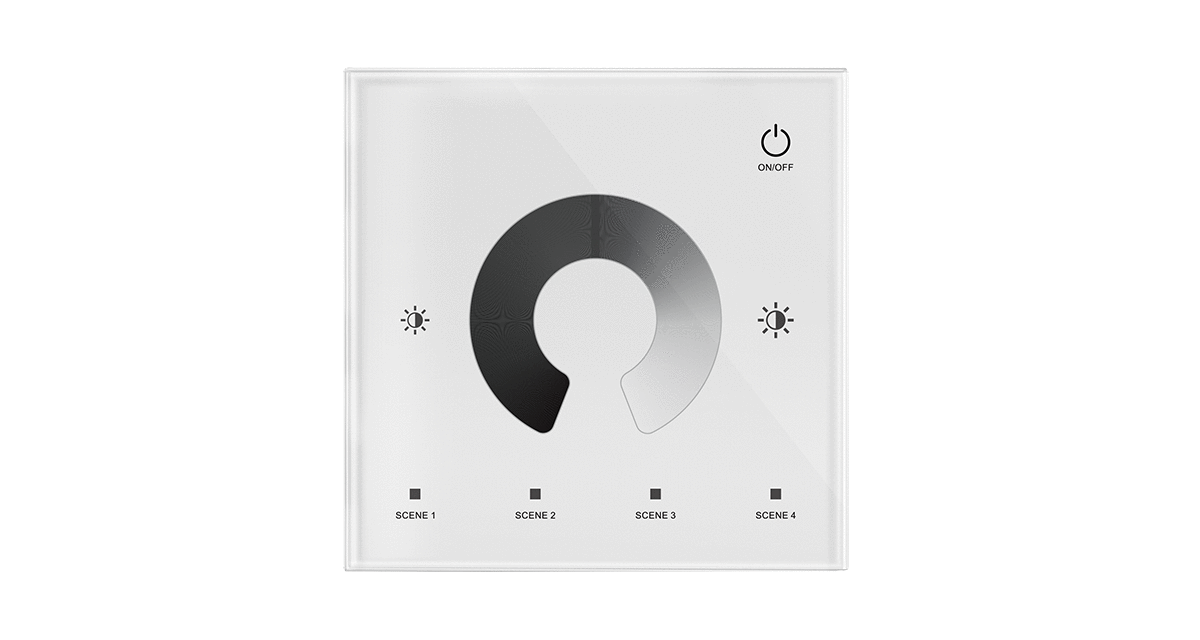

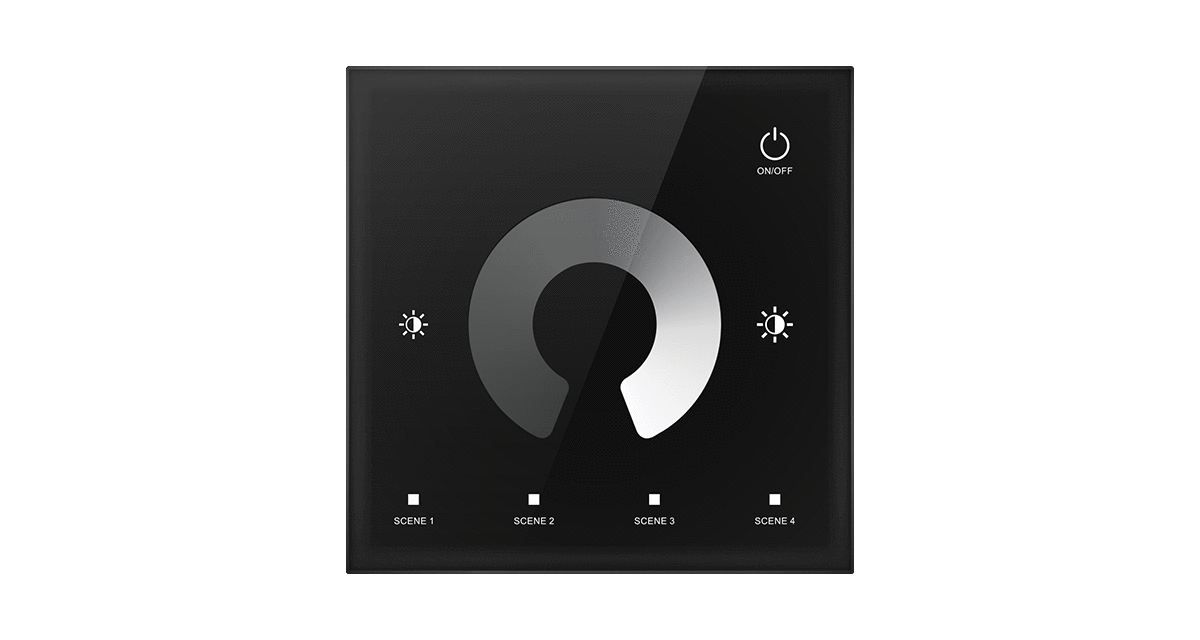

T1 Touch Panel LED Controller | 2-CH 5A 12–48V CV Dimmer

Overview

The T1 Touch-Panel LED Controller is a 2-channel constant-voltage dimmer designed to control LED strips or low-voltage luminaires operating at 12–48V DC. With a sleek touch panel interface and smooth PWM dimming, T1 enables intuitive brightness control for furniture, closets, cabinets, shelves and ambient lighting. Each channel supports up to 5A output, making it suitable for medium-power LED strips and general-purpose lighting installations.

Key Features

• 2 independent constant-voltage channels (2CH)
• Input voltage: 12–48V DC
• Output current: 5A per channel
• Touch-panel control — clean, modern interface
• Smooth 0–100% PWM dimming without flicker :contentReference[oaicite:2]{index=2}
• Ideal for cabinets, wardrobes, furniture lighting, shelves, ambient LED strips
• Compact design for easy installation in junction boxes or profiles
• Low-voltage safe operation (constant voltage DC)

Technical Notes

• Combined max output: 5A × 2CH = 10A (depending on load design)
• Each channel controls a separate LED circuit — e.g. two different fixtures or zones.
• PWM output ensures stable dimming performance and avoids flicker in LED strips. :contentReference[oaicite:3]{index=3}
• Requires a regulated DC power supply matching the LED strip voltage (12V, 24V, 36V, or 48V DC).
• Not a power supply — only a dimming controller.

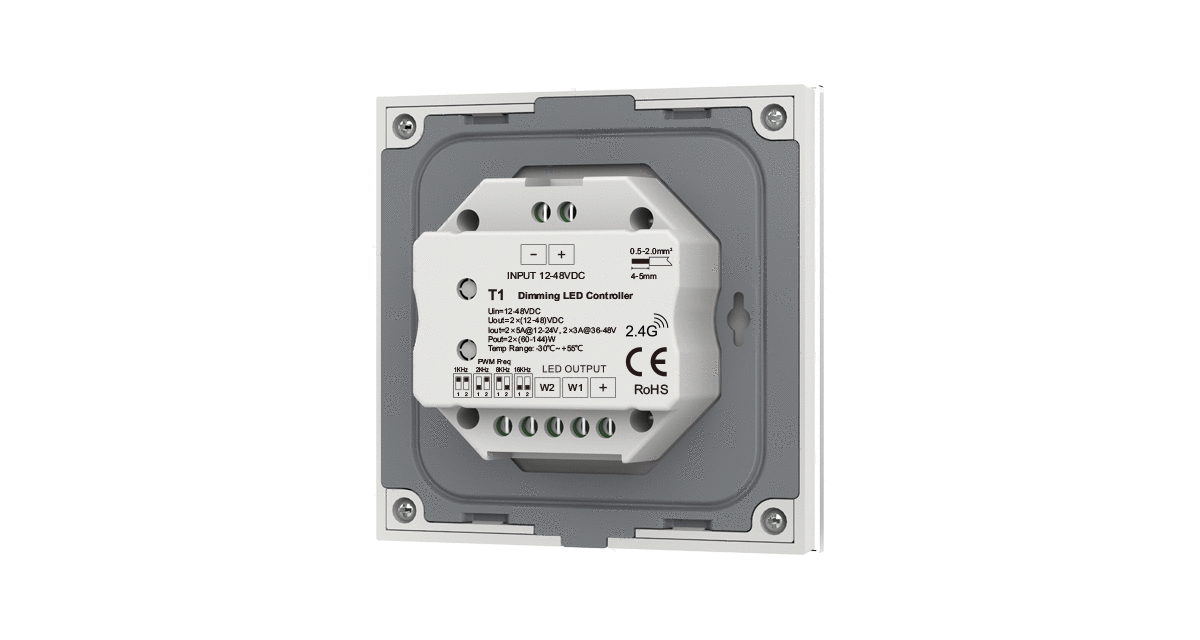

Wiring & Installation Instructions

• Connect DC power (12–48V) to the input terminals (observe polarity).
• Connect LED strips or LED modules to Channel 1 and Channel 2 output terminals.
• Ensure wire gauge is appropriate for the load current (5A per channel).
• Mount the controller in a dry indoor location (IP20). Ensure ventilation if installed in closed enclosures.
• Separate LED circuits per channel for independent control.

Applications

• Cabinet and wardrobe LED lighting
• Furniture, shelves and display lighting
• Under-cabinet kitchen lighting
• Ambient LED strip lighting in residential or commercial spaces
• Dual-zone dimming (e.g. top & bottom, left & right) of LED installations

Technical Specifications
