T11(IT) 4-Zone Dimming Panel | AC 100–240V Wall LED Controller

Overview

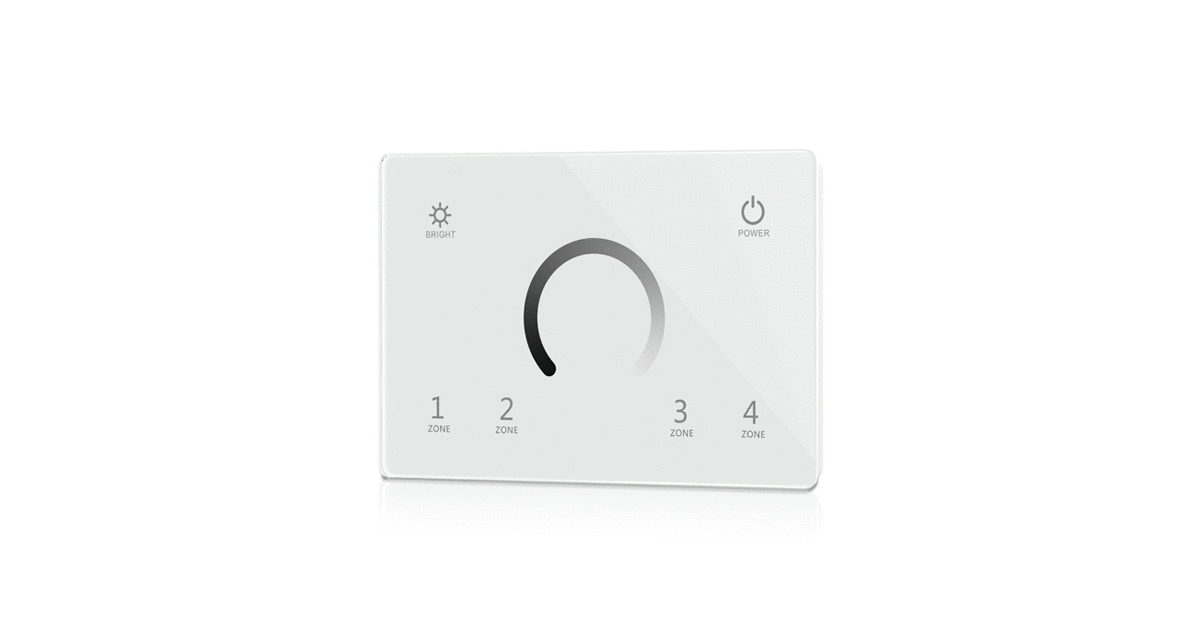

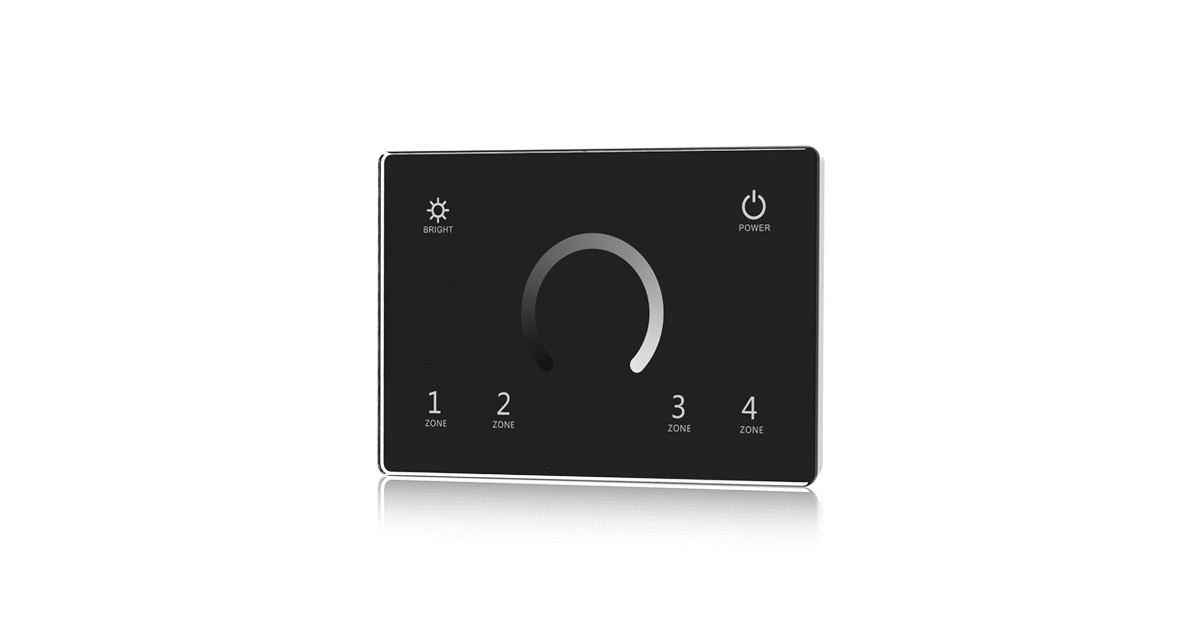

The T11(IT) is a 4-zone wall-mounted dimming controller designed for smooth and responsive control of LED lighting systems. Powered directly from 100–240VAC, it requires no external driver for operation. The T11(IT) works as a 2.4G RF transmitter, enabling wireless dimming control when paired with compatible LED receivers. It features a sleek touch-sensitive panel, four independent zones and precise brightness adjustment, making it ideal for residential, commercial and hospitality lighting environments.

Key Features

• 4 independent lighting zones
• 100–240VAC direct input (no DC power required)
• Touch-sensitive brightness control
• 0–100% smooth dimming
• 2.4G RF wireless signal output
• Compatible with RF dimming receivers
• Memory function for restoring last brightness
• Modern glass touch panel with backlit interface
• Wall-mounted installation (standard AC box)

Technical Notes

• T11(IT) is an RF transmitter only; it does not output constant voltage directly.
• Each of the four zones can be controlled independently.
• Supports dimming of LED strips and fixtures through RF receivers.
• Ideal for multi-room or multi-area lighting applications.
• Designed for indoor installations in dry environments.

Operation

• Short press: Toggle ON/OFF per zone
• Long press: Smooth dimming cycle
• Zone buttons: Select and control each area individually

Applications

• Residential LED dimming control
• Hotels, offices and conference rooms
• Restaurants, cafés and retail lighting
• Multi-zone ambient and architectural lighting
• Any project requiring AC-powered touch dimming

Technical Specifications

Parameter	Specification
Model	T11(IT)
Input Voltage	100–240VAC
Control Method	Touch panel dimming (0–100%)
Wireless Protocol	2.4G RF transmitter
Zones	4 independent lighting zones
Mounting	Wall-mounted (AC wall box)
Faceplate	Glass touch panel
Environment	Indoor, dry locations
