T14 RGBW DMX Master | 4-Zone Touch Panel 100–240V Controller

Overview

The T14 is a professional 4-zone RGBW DMX master controller designed for architectural, commercial and high-end residential lighting systems. Powered directly from 100–240VAC, the T14 offers smooth and precise RGBW color control through DMX512 output. Equipped with a modern capacitive touch glass panel, color wheel and dedicated control keys, it delivers advanced lighting performance with intuitive user operation. Ideal for DMX-based installations requiring reliable and user-friendly wall-mounted control.

Key Features

• 4 independent lighting zones
• DMX512 master output for RGBW LED systems
• 100–240VAC direct input (no DC power supply needed)

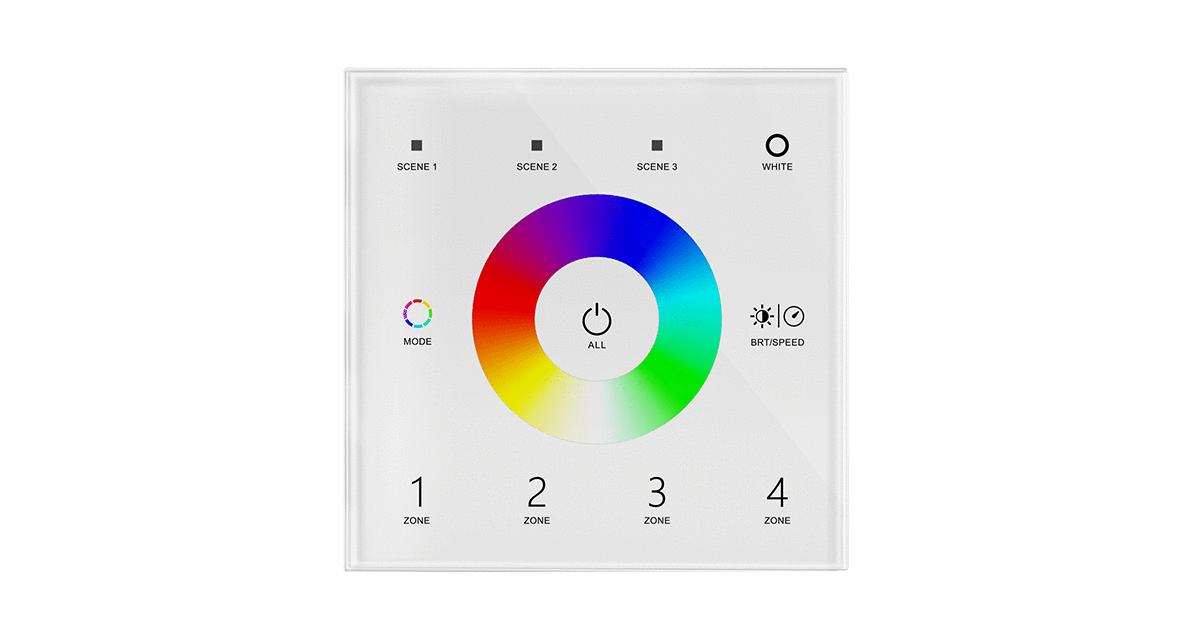

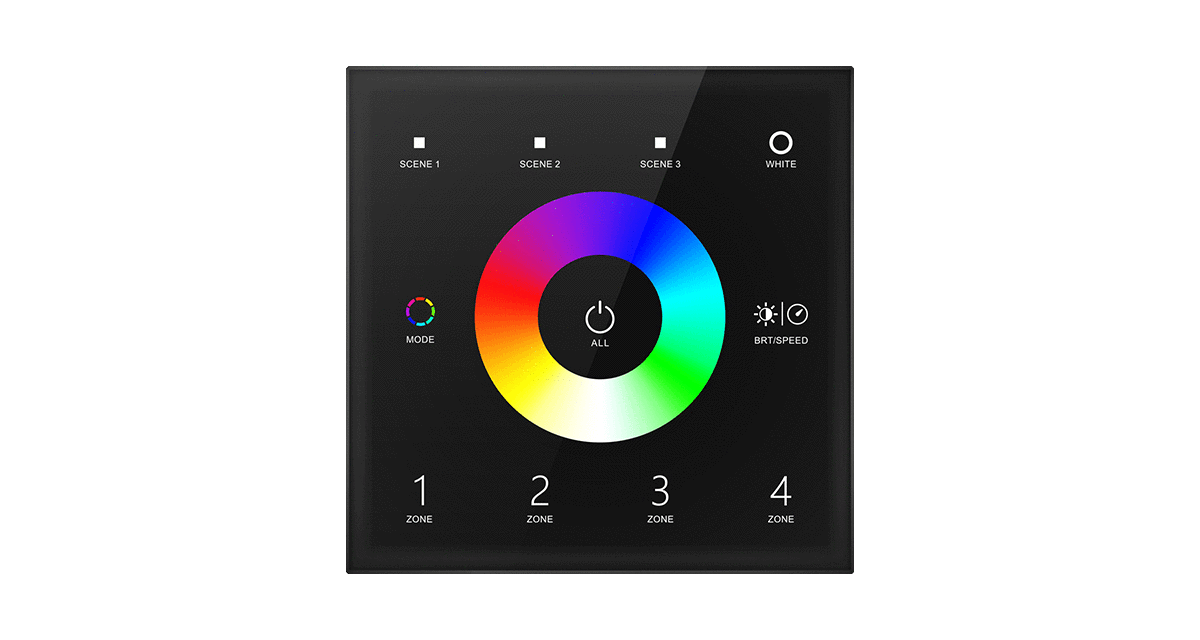

• Capacitive touch RGB color wheel
• Brightness control, saturation adjustment and RGBW tuning
• Scene and mode selection (depending on DMX mapping)
• Glass touch panel with illuminated interface
• Stable DMX output for professional applications

DMX Control Features

• DMX512 Output: Standard signal for all DMX-compatible RGBW drivers
• RGBW Channels: Control each component for precise color mixing
• Zone Management: Assign and control 4 independent zones
• Scenes & Effects: Trigger dynamic modes via DMX-enabled fixtures

Technical Notes

• T14 is a DMX master — requires DMX decoders (such as CV or CC DMX drivers).
• Suitable for RGBW strips, RGB fixtures and multi-channel lighting.
• Uses standard DMX protocol, compatible with any DMX512 decoder.
• Ideal for long-distance and multi-zone lighting systems.

Applications

• Architectural RGBW lighting
• Commercial DMX installations
• Hotels, lounges, restaurants and clubs
• Smart residential lighting systems
• DMX-driven cove, façade and ambient lighting
• Multi-zone professional lighting control

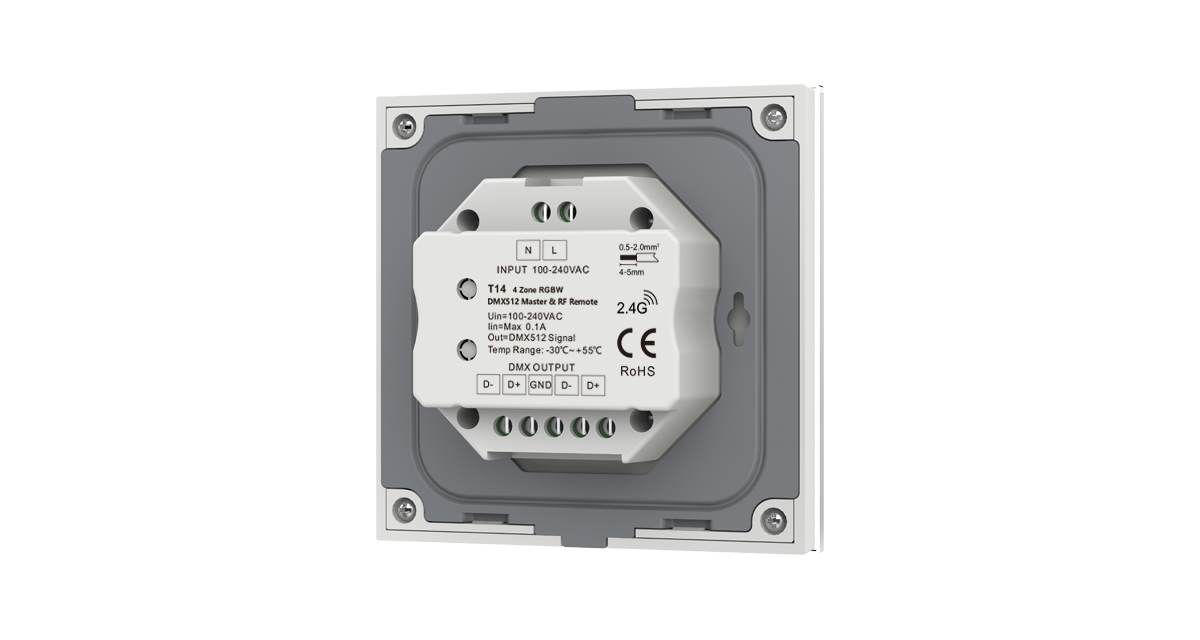

Technical Specifications

Parameter	Specification
Model	T14
Zones	4 independent zones
Input Voltage	100–240VAC
Control Protocol	DMX512 (Master)
Control Capabilities	RGBW, dimming, saturation and mode selection
Interface	Capacitive touch glass panel
Mounting	Wall-mounted (AC wall box)
Compatible LEDs	RGBW, RGB, multi-channel fixtures via DMX decoders
Environment	Indoor, dry locations
