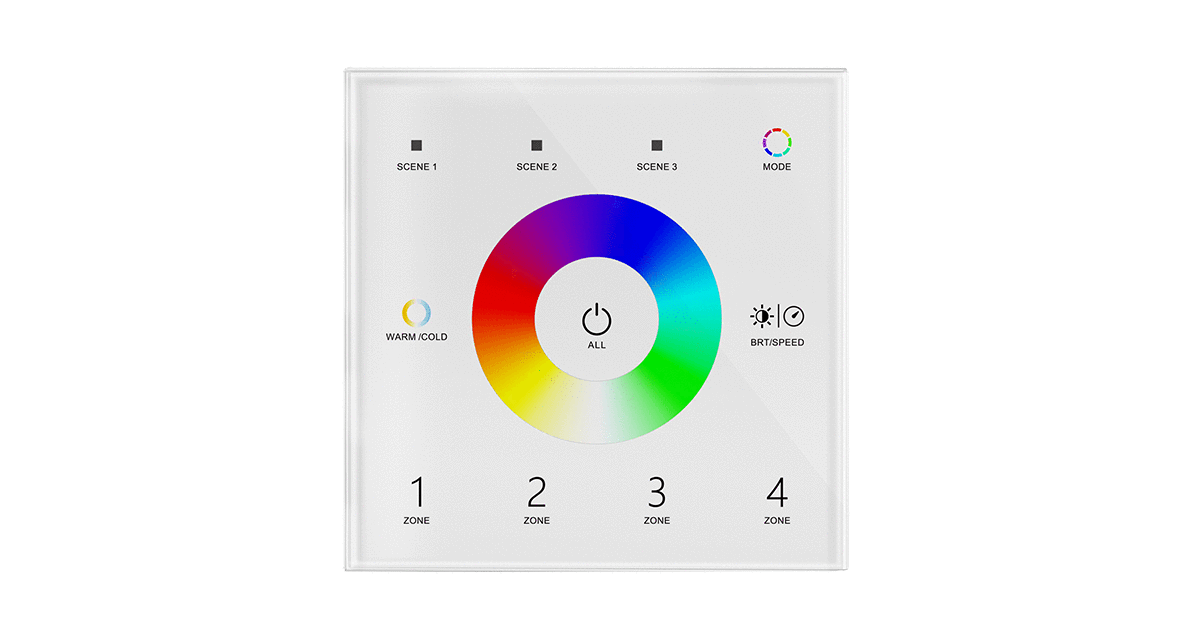

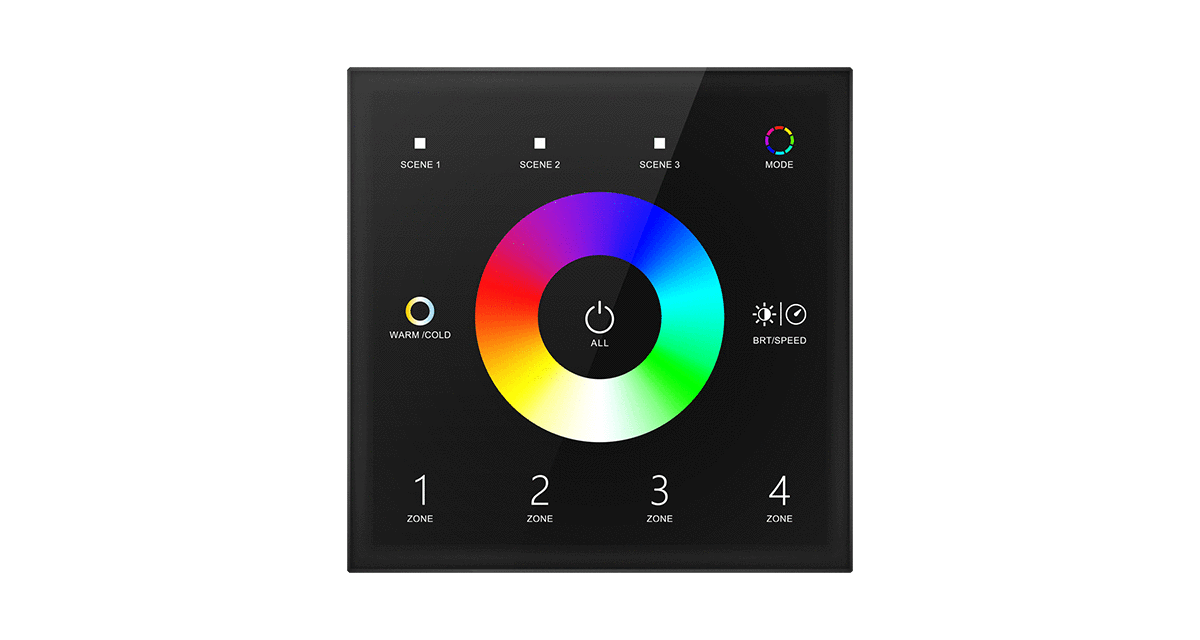

T15 RGBW+CCT Wall Panel | 4-Zone AC 100–240V LED Controller

Overview

The T15 is a premium 4-zone RGBW+CCT wall-mounted controller designed for full-spectrum LED lighting systems. Powered directly by 100–240VAC, it combines RGB color control, adjustable white temperature and zone-based management into a single, elegant touch panel. The T15 operates as a 2.4G RF transmitter, enabling wireless control when paired with compatible RF LED receivers. Its multi-function interface makes it ideal for modern homes, hospitality spaces and advanced lighting projects.

Key Features

• 4 independent lighting zones
• Supports RGBW + tunable white (CCT) control
• Direct AC input: 100–240VAC (no DC adapter required)
• Touch glass interface with backlit buttons
• 2.4G RF wireless signal output
• Full-spectrum control: color, brightness and color temperature
• Memory function for last settings
• Modern wall-mounted design for smart interiors

Control Functions

• Color Control: Adjust RGB channels for millions of colors
• Brightness Control: Smooth 0–100% dimming
• CCT Adjustment: Control warm-to-cool white range
• Zone Selection: Manage four lighting areas independently
• Scene Modes: Dynamic effects depending on paired receiver

Technical Notes

• T15 is an RF transmitter only; requires RF receivers for LED output.
• Supports RGBW, CCT, monochrome and multi-functional LED setups.
• Ideal for AC-powered installations without extra drivers.
• Designed for indoor use in dry environments.

Applications

• Residential smart lighting
• Hotels, villas and luxury interiors
• Restaurants, lounges and retail spaces
• Architectural RGBW and CCT lighting
• Multi-room or multi-zone LED installations
• Entertainment and ambient lighting environments

Technical Specifications

Parameter	Specification
Model	T15
Zones	4 independent zones
Input Voltage	100–240VAC
Control Protocol	2.4G RF (transmitter)
Control Capabilities	RGBW color, CCT adjustment, dimming
Interface	Capacitive touch glass panel
Mounting	Wall-mounted (AC wall box)
Suitable LED Types	RGBW, CCT, single-color, multi-channel LEDs (via receivers)
Environment	Indoor, dry areas
