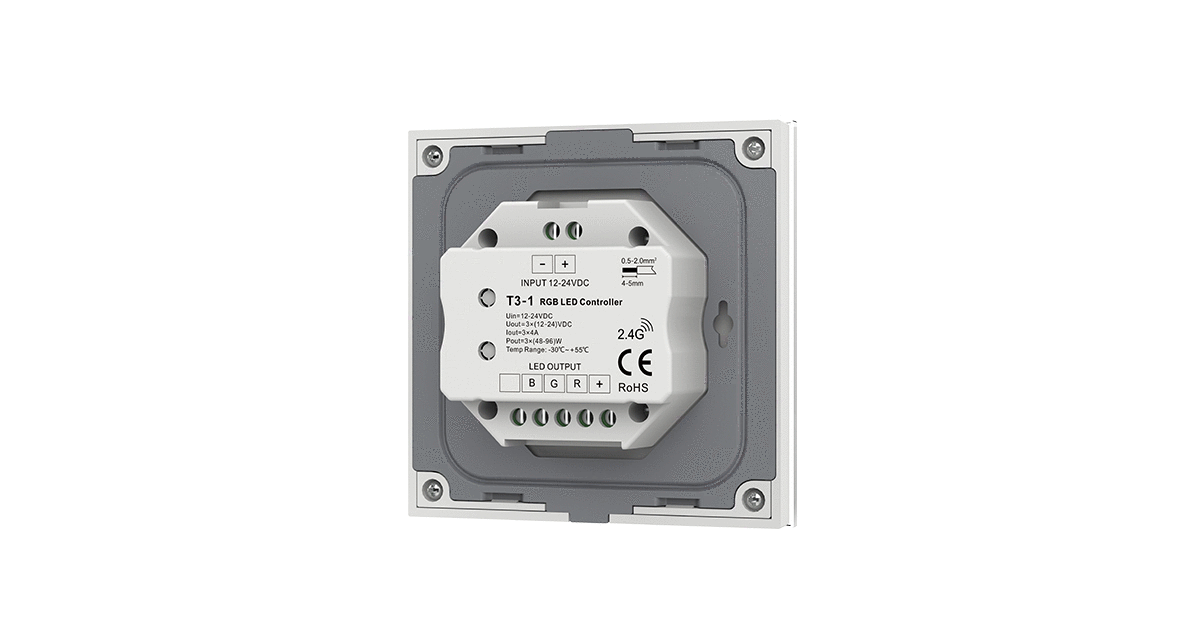

T3-1 RGB Touch Panel | 3-Zone 2.4G Wall Controller (12–24V)

Overview

The T3-1 is a wall-mounted RGB touch panel designed to control RGB LED strips wirelessly through compatible 2.4G RF receivers. Unlike the T3 model, the T3-1 does not include a built-in constant voltage output; instead, it functions as a dedicated RGB controller panel, offering smooth color selection, brightness dimming and saturation control through its capacitive touch interface. Its sleek touch glass design makes it ideal for modern residential, commercial and decorative lighting environments.

Key Features

• RGB touch color wheel for smooth color selection
• 2.4G RF wireless control (no built-in output)
• Works with RF RGB LED controllers
• 0–100% brightness dimming
• Saturation adjustment for fine color control
• Wall-mounted glass capacitive touch panel
• Memory function for last-used mode and brightness
• Fast, responsive and stable RF communication
• 12–24V DC powered wall panel

Technical Notes

• The T3-1 does not have a built-in RGB driver — it requires RF receivers.
• Supports single-zone RGB control (or multi-zone depending on receivers).
• PWM dimming performed by the paired RF controller.
• Standard 86-type or EU wall box mounting.
• Designed for indoor dry environments.

Color & Brightness Control

• Touch Wheel: Select RGB colors smoothly
• Brightness Keys: 0–100% dimming
• Saturation Keys: Adjust color intensity
• Mode Keys: Optional dynamic RGB effects (depending on receiver)

Applications

• RGB LED strip lighting
• Residential mood and ambient lighting
• Hospitality spaces: hotels, bars, lounges
• Retail and showroom lighting
• Architectural color accent lighting
• Cove and indirect RGB lighting

Technical Specifications
