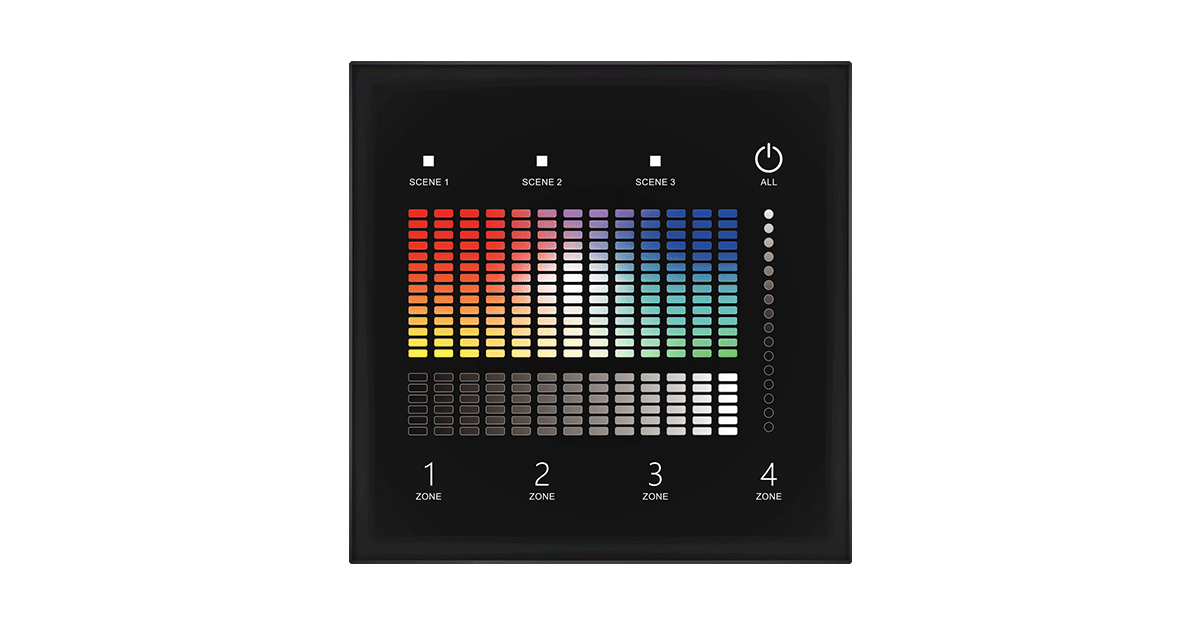

TD4-4S RGBW DALI Panel Master | 4-Zone Wall Touch Controller

Overview

The TD4-4S is a 4-zone wall mounted DALI-2 master controller designed for RGBW LED lighting. It supports DT8-RGBW control, providing smooth color mixing and independent white channel adjustment in each zone. Powered by the DALI bus or an external 24VDC supply, this glass touch panel offers 256-level dimming, scene recall and optional RF remote control, making it ideal for residential, commercial and architectural RGBW installations.

Key Features

• 4-zone DALI-2 master touch panel for RGBW lighting control
• Supports DALI DT8-RGBW plus DT6 dimming modes via compatible drivers
• Independent control of 4 zones separately or synchronously
• Ultra-sensitive glass touch panel with RGB color slider and W-channel brightness slider
• 256-level dimming with smooth 0–100% brightness control
• 3 scene memories for quick recall of favorite colors and brightness
• Powered either from the DALI bus or 24VDC external power supply
• Address selection via rotary coding switches; supports unicast, group and broadcast DALI addressing
• Optional 2.4GHz 4-zone RF remote control (up to approx. 10 m in open space)
• Touch keys with LED indicators for clear status feedback
• Available in white or black glass finish
• DALI-2 certified, 5-year warranty

Technical Notes

• The TD4-4S is a DALI master panel; it does not include a built-in DALI bus power supply.
• A separate DALI bus power supply is required when operating the panel on a DALI line.
• Using a 24VDC auxiliary power supply is recommended to reduce load on the DALI bus, especially when multiple panels are installed.
• Supports DT8-RGBW for multi-color RGBW fixtures and DT6 for dimming when used with compatible DALI drivers.
• 4 DALI addresses are used – one for each zone – with addressing set via the rotary switch (unicast, group or broadcast modes).
• 256 dimming steps provide fine, flicker-free brightness control from 0–100%.
• Three scene keys can store and recall predefined RGBW scenes; long press saves the current scene.
• Panel can be matched with an RF 2.4GHz four-zone remote to allow wireless control in parallel with DALI control.
• Compatible with other DALI-2 products following IEC 62386 standards.

Wiring & Installation Notes

• Connect the DALI bus wires to the DA+ and DA– terminals according to the wiring diagram.
• If using external 24VDC, connect a regulated 24VDC supply to the +24V and GND power input terminals.
• Ensure a compliant DALI bus power supply is present when operating on a DALI line.
• Set the DALI address mode (unicast, group or broadcast) using the X/Y rotary coding switches as required by the project design.
• Install the touch panel into a standard 86 × 86 mm wall box.
• Indoor use only; IP20 protection class.
• Operating temperature: approximately –20°C to +50°C; maximum case temperature around +65°C.
• Provide adequate ventilation and avoid mounting in locations with excessive heat or moisture.
• All wiring should be carried out by qualified personnel in accordance with local electrical regulations.

Applications

• RGBW LED strip and linear lighting control
• Residential mood and decorative lighting
• Hotel rooms, suites, lobbies and hospitality spaces
• Retail and showroom accent lighting
• Bars, restaurants and entertainment venues
• Architectural feature lighting and color-changing scenes
• DALI-2 based smart lighting systems requiring 4-zone RGBW control

Technical Specifications

Parameter	Specification
Model	TD4-4S 4-Zone RGBW DALI Panel Master
Function Type	4-zone wall mounted DALI-2 RGBW master controller (DT8-RGBW)
Power Supply	DALI bus or 24VDC external power supply
Static Current	17 mA @ 16V DALI bus, 2 mA @ 24VDC
Output Signal	DALI (DT6 / DT8-RGBW via compatible drivers)
Input Signal	Touch keys + RF 2.4GHz (optional remote)
Zones	4 zones, controllable separately or together
Dimming Levels	256 levels, 0–100% dimming range
Scenes	3 scene memories (save/recall)
RF Control Distance	Up to approx. 10 m (open space, with compatible RF remote)
Panel Material	High-strength glass touch panel, white or black finish
Installation	Wall mounted, 86 mm touch panel size, standard wall box
Operating Temperature	–20°C to +50°C (Ta)
Case Temperature (Max.)	+65°C (Tc)
IP Rating	IP20 (indoor use)
Dimensions	Approx. 112 × 112 × 50 mm overall (86 × 86 mm touch area)
Certification	DALI-2 compliant
Warranty	5 years
