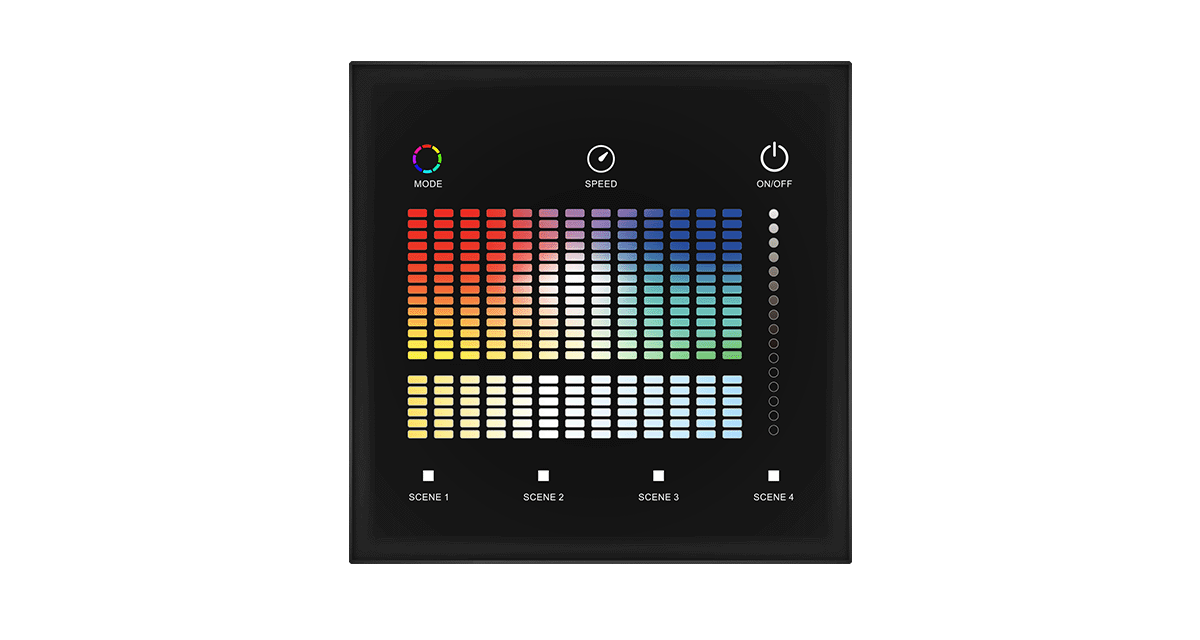

TD5-S DALI RGB+CCT Touch Panel | 1-Zone LED Controller

Overview

The TD5-S is a wall-mounted DALI-2 master controller designed for precise RGB + CCT lighting control within a single zone. It provides smooth dimming, accurate color tuning, scene storage, and full compatibility with DT6 and DT8 DALI control gear. The high-strength glass touch interface offers an intuitive user experience suitable for residential, commercial, and architectural lighting applications.

Key Features

• Single-zone DALI-2 master controller for RGB + CCT fixtures
• Supports DT6 (dimming) and DT8 (RGB, RGBW, RGB+CCT, Tunable White)
• High-precision glass touch panel with sliders for brightness, color, and CCT
• Smooth 256-level dimming and seamless color transitions
• Four programmable scene memories
• Operates via DALI bus power or external 24V DC supply
• Optional 2.4GHz RF remote control for wireless operation
• Unicast, group, and broadcast DALI communication
• Fits standard 86mm wall box for easy installation
• IP20 protection and wide operating temperature range
• Five-year warranty

Technical Notes

• The TD5-S requires an external DALI bus power supply; it does not generate its own bus voltage.
• Supports DT8 color types: RGB, RGBW, RGB+CCT, and Tunable White.
• Scene memory is stored internally and remains saved after power loss.
• Supports unicast, group, and broadcast DALI addressing.
• When using a 24V DC external supply, DALI bus load is reduced.
• RF remote pairing allows control via both wired DALI and wireless RF.
• Digital DALI signals ensure flicker-free and precise dimming.
• Best performance is achieved with DT8-compatible LED drivers.
• Suitable for installations requiring accurate and stable color reproduction.

Wiring & Installation Notes

• Connect to a DALI bus powered by a certified 16V DALI PSU.
• Observe correct DALI polarity during wiring.
• Use 0.5–1.5 mm² cable for DALI signal wiring.
• For external power, connect a regulated 24V DC supply to the DC input terminals.
• Ensure total DALI bus current does not exceed PSU capacity.
• Install panel into a standard 86 × 86 mm wall box.
• Recommended to avoid direct sunlight or humid environments.
• Operating temperature range: -20°C to +50°C.
• Maximum case temperature: +65°C.

Applications

• Residential smart lighting
• Hotels, suites, and hospitality spaces
• Retail shop lighting and display control
• Office and showroom ambient lighting
• Architectural cove and accent lighting
• RGB+CCT LED strip and fixture installations

Technical Specifications

Parameter	Specification
Product Type	TD5-S 1-Zone RGB + CCT DALI Touch Panel Master
Supported Protocol	DALI-2 (DT6 dimming, DT8 RGB / RGBW / RGB+CCT / Tunable White)
Power Supply	DALI bus or 24V DC external supply
Static Current Consumption	17 mA at 16VDC; 2 mA at 24VDC
Control Interface	Glass touch panel with optional 2.4GHz RF remote support
Dimming and Color Levels	256 levels; smooth RGB and CCT adjustment
Scene Memory	4 programmable scenes
Control Modes	Unicast, Group, Broadcast, Scene mode
Panel Material	High-strength glass panel
IP Rating	IP20
Operating Temperature	-20°C to +50°C
Maximum Case Temperature	+65°C
Gross Weight	Approximately 0.23 kg
Wall Box Size	Standard 86 mm installation box
Certifications and Warranty	DALI-2 certified, CE, RoHS, 5-year warranty
