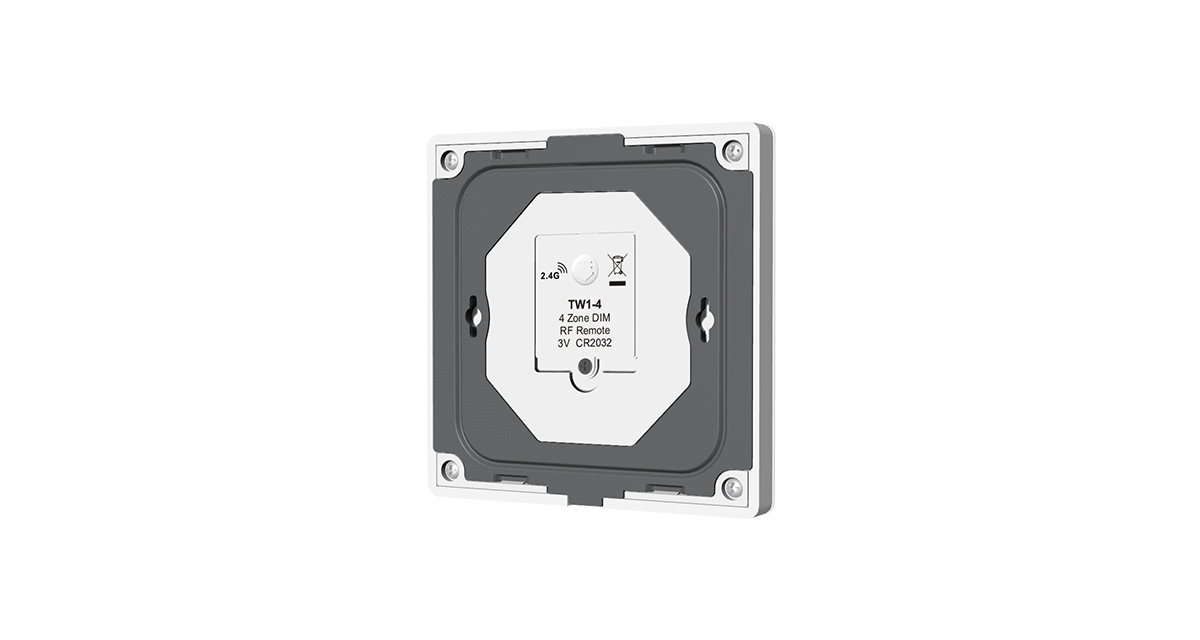

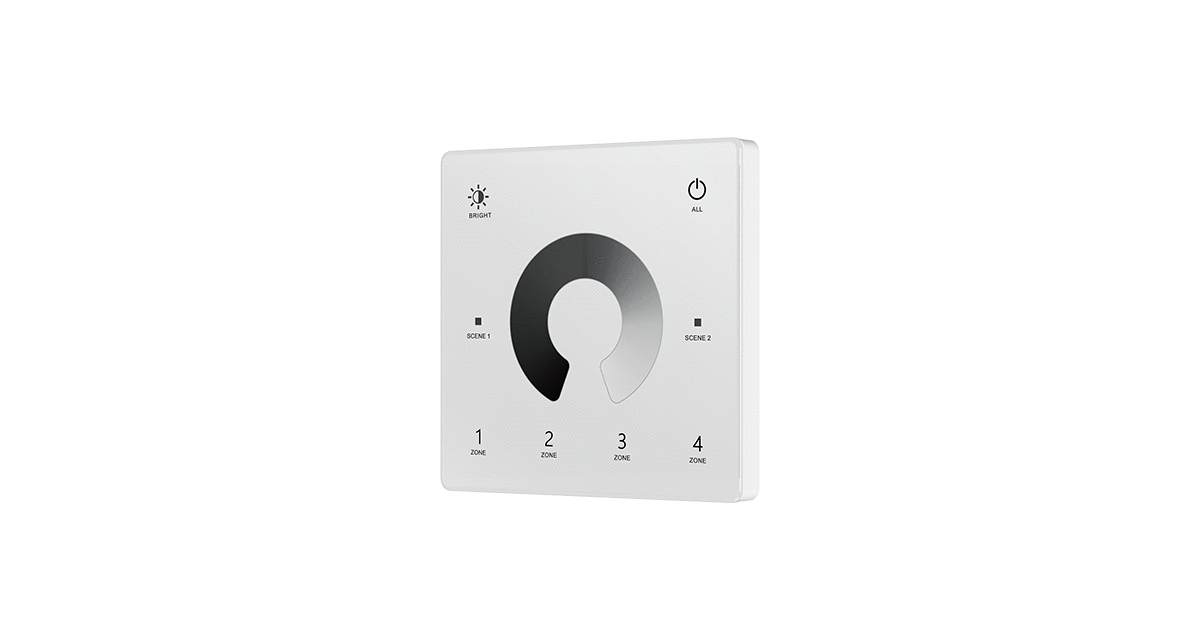

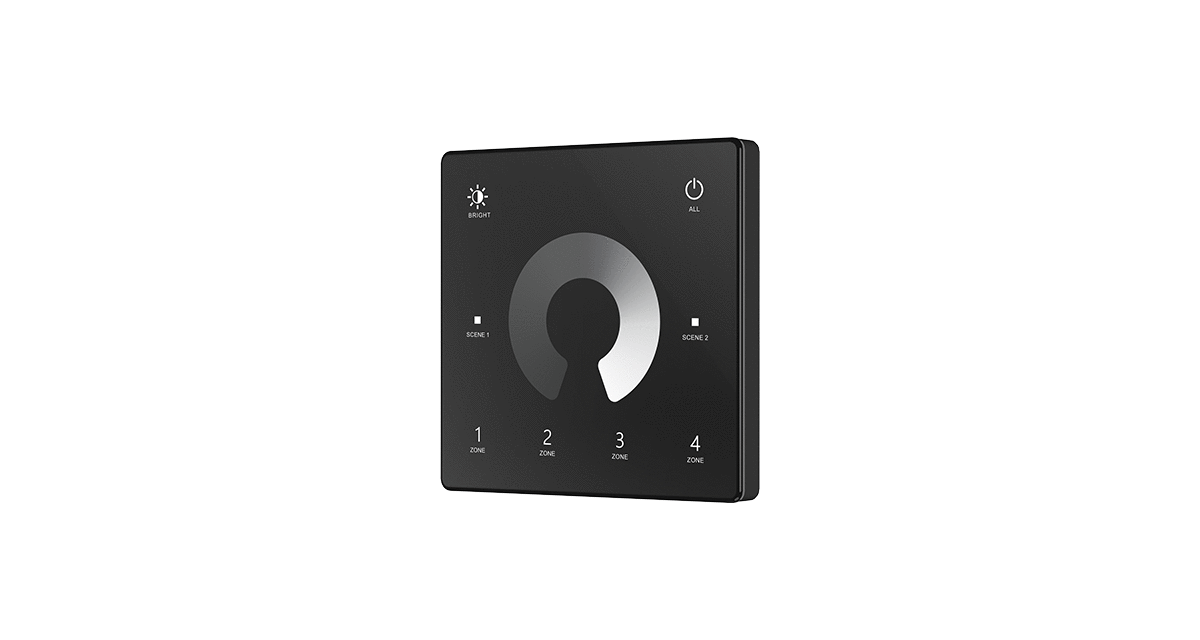

TW1-4 Touch Wheel Panel | 4-Zone Wall Remote (CR2032 Battery)

Overview

The TW1-4 is a wall-mounted 4-zone touch wheel panel remote designed for wireless control of LED lighting using a standard 2.4G RF signal. Powered by a CR2032 battery, it provides convenient installation without wiring, making it ideal for both new and existing spaces. The intuitive color touch wheel (used for RGB/RGBW setups depending on receiver) and dedicated zone buttons allow flexible, multi-area lighting control. Perfect for residential, commercial and smart lighting applications.

Key Features

• 4 independent lighting zones
• Capacitive touch color wheel
• 2.4G RF wireless transmission
• Battery powered (CR2032)
• 0–100% brightness dimming
• Supports RGB, RGBW or CCT depending on paired receiver
• Simple installation with no wiring required
• Modern, slim wall-mounted design

Control Functions

• Color Wheel: Smooth RGB color selection
• Brightness: Adjust LED brightness from 0–100%
• Zone Selection: Control four lighting areas independently
• Mode/Effects: Dynamic modes depending on LED receiver type

Technical Notes

• TW1-4 works as a wireless RF transmitter — requires compatible RF LED receivers.
• Functions vary depending on the LED driver (monochrome, CCT, RGB, RGBW).
• Battery-powered design enables flexible placement.
• Ideal for indoor installations.

Applications

• Residential multi-zone LED control
• Hotel rooms and suites
• Restaurants, bars and lounges
• Smart home lighting systems
• Retail and showroom lighting
• RGB or RGBW ambient and decorative lighting

Technical Specifications

Parameter	Specification
Model	TW1-4
Zones	4 independent zones
Power Supply	CR2032 battery
Control Protocol	2.4G RF wireless
Control Type	Color wheel + touch buttons
Supported LED Types	RGB, RGBW, CCT, single-color (via receivers)
Installation	Wall-mounted, wireless
Environment	Indoor, dry locations
