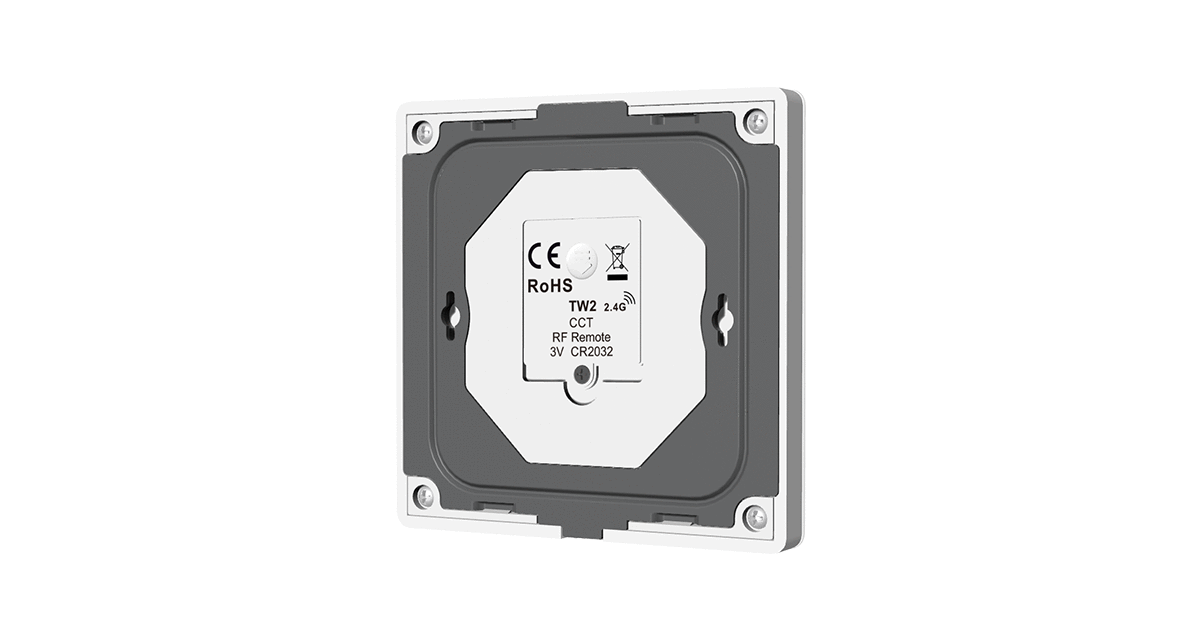

TW2 CCT Touch Panel | 1-Zone Wall Controller (CR2032 Battery)

Overview

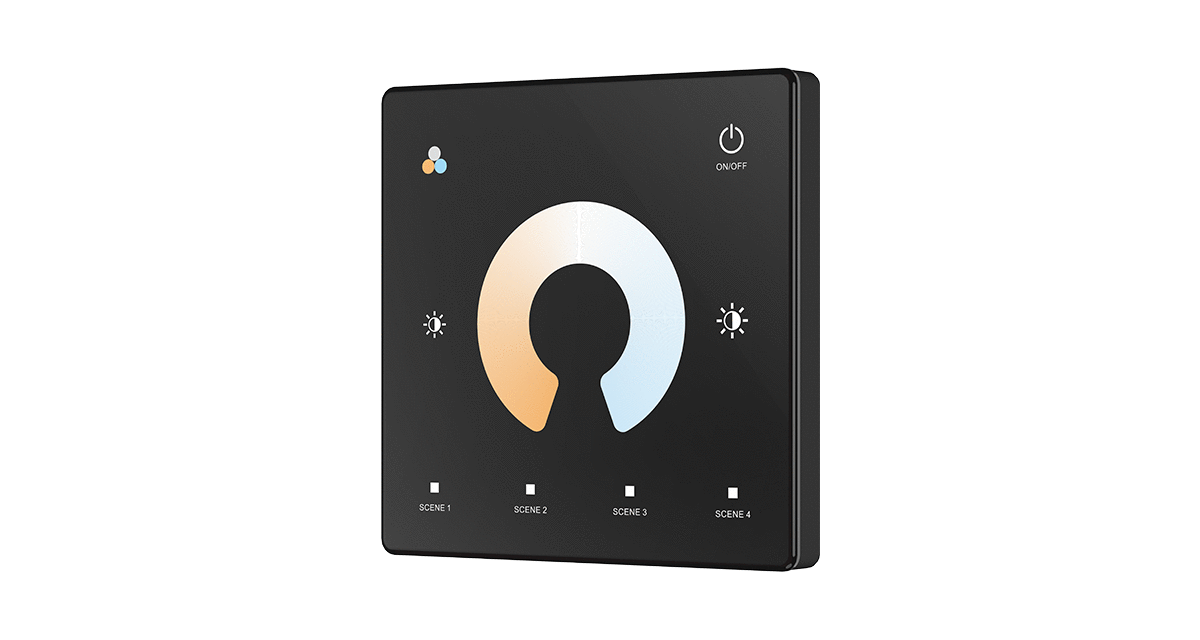

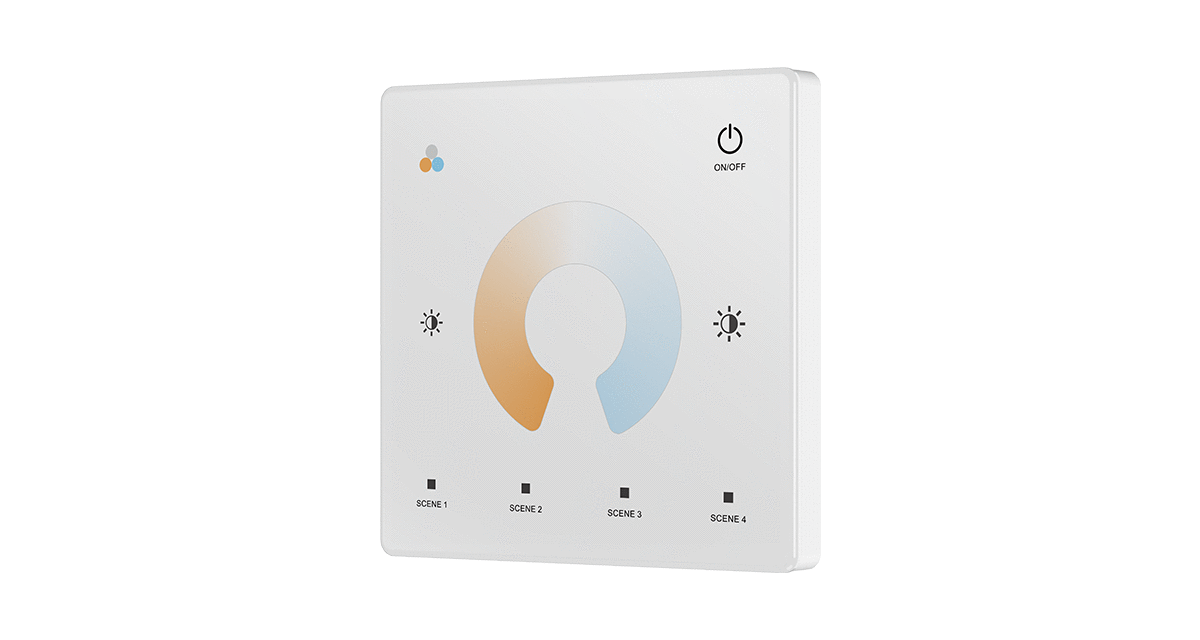

The TW2 is a 1-zone wall-mounted CCT touch panel designed for smooth color temperature adjustment of tunable white LED strips. Powered by a CR2032 battery, it features a sensitive capacitive touch wheel for warm-to-cool white tuning and supports 2.4G RF wireless communication when paired with compatible LED controllers. With its modern glass finish and wire-free installation, the TW2 is ideal for residential, commercial and hospitality lighting environments.

Key Features

• 1-zone CCT (tunable white) control
• Capacitive touch wheel for smooth color temperature adjustment
• 0–100% brightness dimming
• ON/OFF control
• 2.4G RF wireless communication
• Battery powered (CR2032) – no wiring required
• Modern wall-mounted glass panel design
• Fast and responsive touch performance
• Compatible with RF CCT LED controllers

Technical Notes

• TW2 is a wireless remote panel and requires an RF CCT LED controller.
• Provides smooth PWM-based dimming and CCT tuning when paired with compatible receivers.
• Battery-powered design allows installation anywhere without wiring.
• Multiple controllers can be paired to one TW2 for synchronized CCT control.
• Designed for indoor use in dry environments.

Pairing & Operation

• Power on the RF CCT controller and LED strip.
• Enter the pairing (learning) mode on the controller.
• Touch the power or wheel button on the TW2 to bind.
• Use the touch wheel to adjust color temperature from warm to cool white.
• Use brightness buttons for smooth dimming adjustment.

Applications

• Tunable white LED strip installations
• Residential lighting (bedrooms, living rooms, kitchens)
• Hotel rooms and hospitality lighting
• Retail, commercial and office environments
• Architectural ambient lighting
• Furniture, shelves and decorative CCT lighting
