Luminaria Lighting

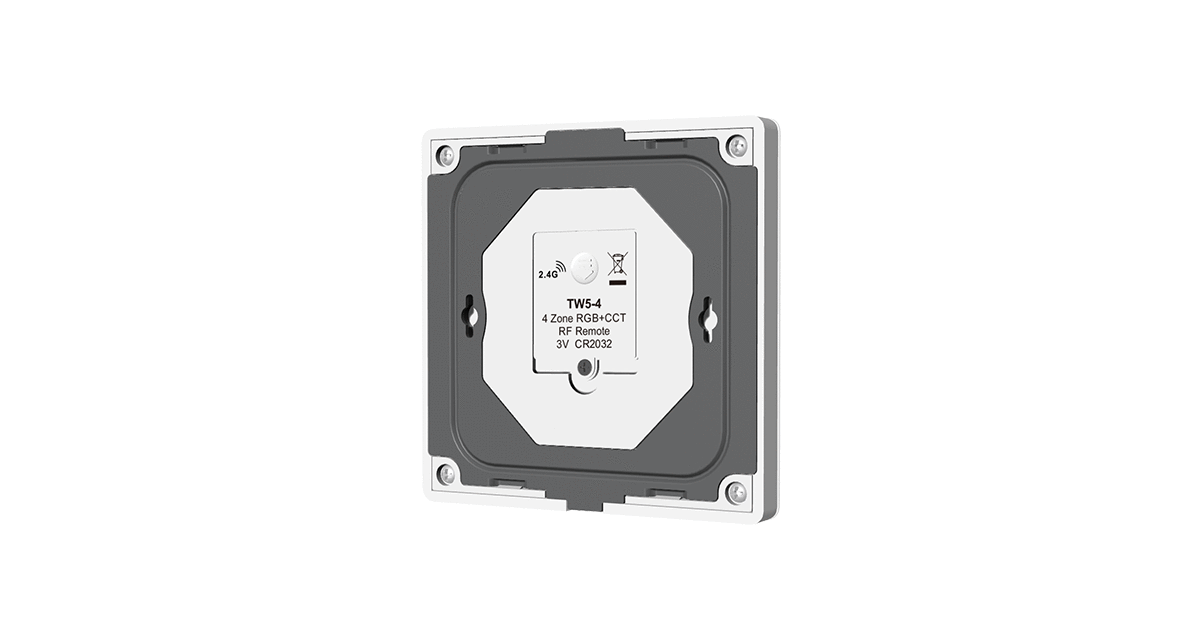

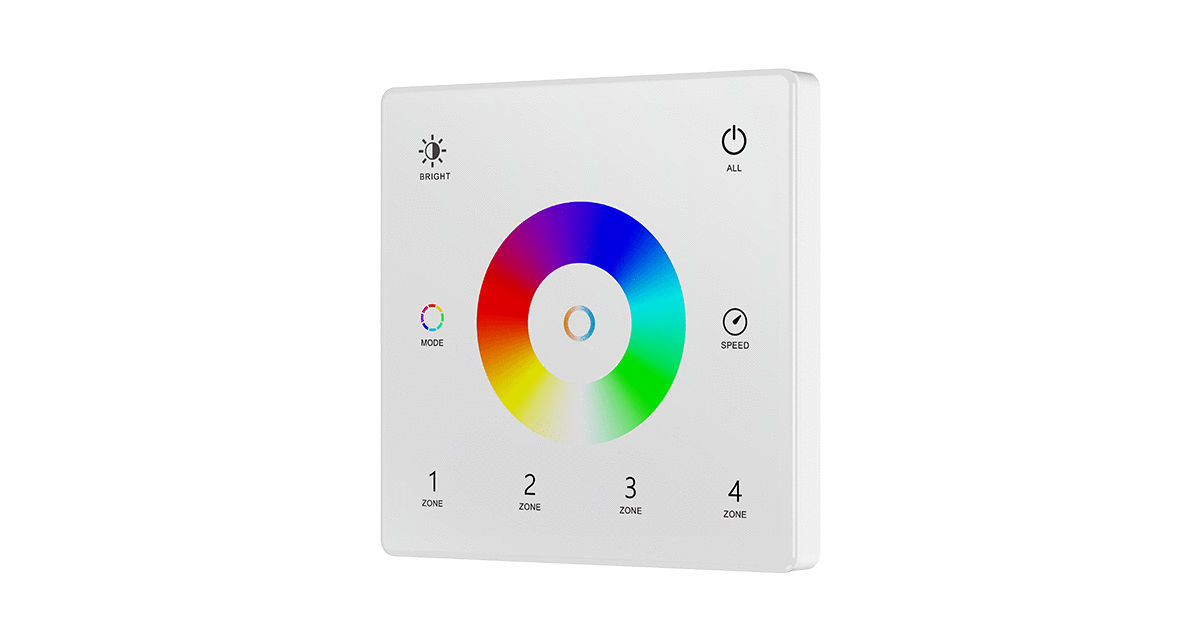

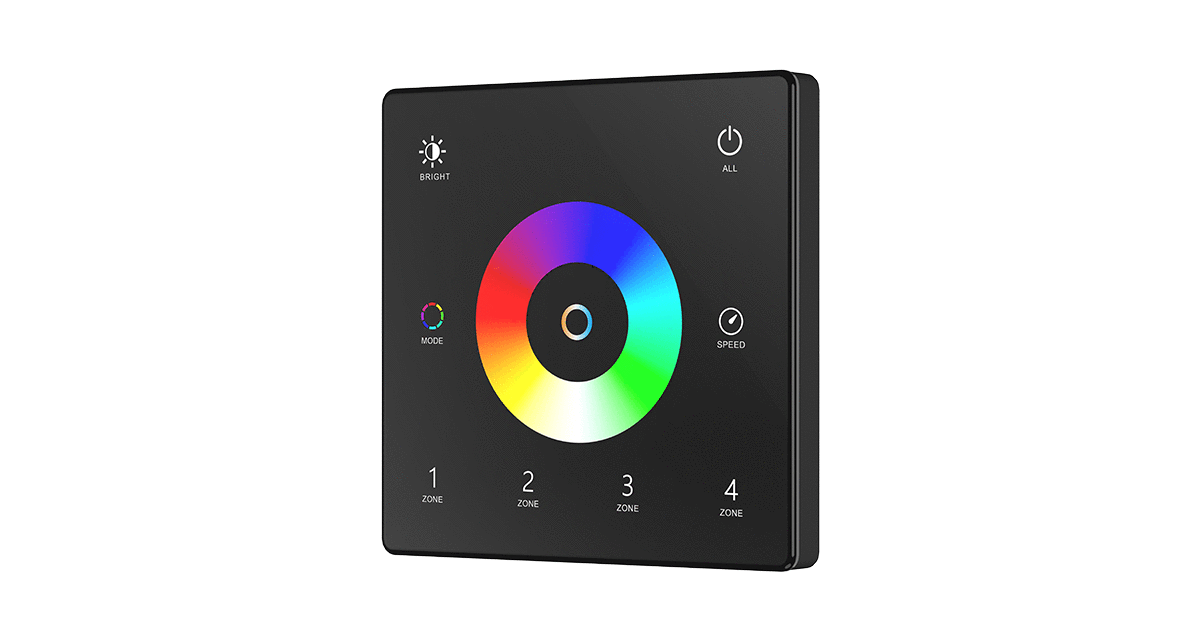

TW5-4 RGB+CCT Touch Panel | 4-Zone Wall Remote (CR2032)

TW5-4 RGB+CCT Touch Panel | 4-Zone Wall Remote (CR2032)

Overview

The TW5-4 is a premium 4-zone wall-mounted RGB+CCT touch panel remote designed for wireless LED lighting control using a 2.4G RF signal. Powered by a CR2032 battery, it installs without wiring and provides full-spectrum control, including RGB color selection, tunable white (CCT) adjustment and brightness dimming. With its touch-sensitive color wheel and dedicated zone keys, the TW5-4 is ideal for modern residential, hospitality and commercial lighting environments.

Key Features

  • 4 independent lighting zones
  • RGB color control + CCT (warm-to-cool white) adjustment
  • 2.4G RF wireless transmission
  • Capacitive touch color wheel
  • 0–100% dimming range
  • Saturation control for fine color tuning
  • Battery powered (CR2032) for easy installation
  • Sleek wall-mounted panel design

Control Functions

  • Color Wheel: Smooth RGB color selection
  • CCT Keys: Adjust warm–cool white temperature
  • Brightness: Full-range dimming
  • Zone Buttons: Select and control 4 different areas
  • Modes: Dynamic scenes depending on paired receiver

Technical Notes

  • TW5-4 is an RF transmitter only — requires compatible RF LED receivers.
  • Supports RGB+CCT, RGBW, CCT or single-color LEDs depending on receiver type.
  • Battery-powered design allows retrofitting without wiring.
  • Designed for indoor installations in dry areas.

Applications

  • Residential smart RGB+CCT lighting
  • Hotel rooms, suites and hospitality spaces
  • Restaurants, lounges and cafés
  • Commercial ambient and decorative lighting
  • RGB+CCT cove lighting and indirect illumination
  • Multi-zone interior lighting design

Technical Specifications

Parameter Specification
Model TW5-4
Zones 4 independent zones
Power Supply CR2032 battery
Control Protocol 2.4G RF wireless
Control Type RGB+CCT, brightness, saturation
Interface Capacitive touch color wheel + buttons
Supported LED Types RGB+CCT, RGBW, CCT, monochrome (via receivers)
Installation Wireless wall-mounted
Environment Indoor, dry locations
