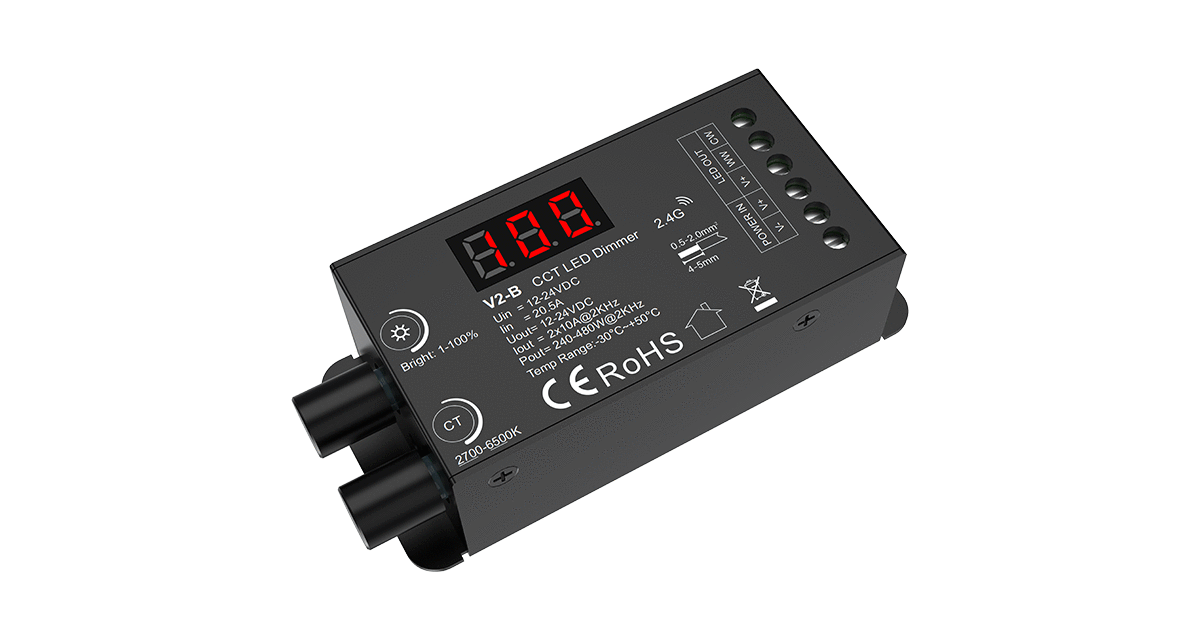

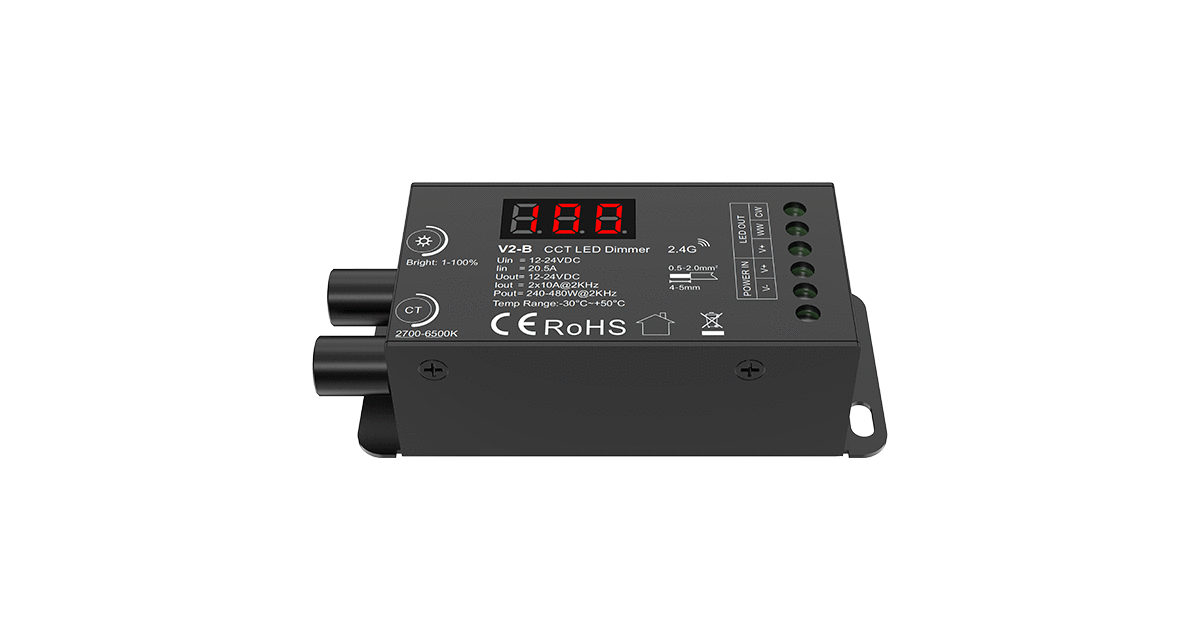

V2-B LED Controller | 2CH 10A 12–24V Constant Voltage Receiver

Overview

The V2-B is a high-performance 2-channel constant voltage LED controller designed for smooth dimming and stable output for low-voltage LED strip installations. With a maximum load of 10A per channel and a wide input range of 12–24V DC, it delivers reliable performance for residential, commercial and architectural lighting projects. The controller supports 2.4G RF wireless control when paired with compatible remotes, providing flexible operation and multi-zone capability.

Key Features

• 2 channels × 10A output current
• Wide input voltage: 12–24V DC
• Constant voltage PWM dimming
• 2.4G RF wireless control (when paired with remote)
• Smooth 0–100% brightness dimming
• High load capacity for powerful LED installations
• Multiple receivers can be synced to one remote
• Compact and durable housing design

Technical Notes

• V2-B functions as a receiver for RF dimming remotes.
• Suitable for single-color LED strips or dual-output installations.
• PWM dimming ensures flicker-free output.
• Channels may be used independently or combined (depending on application).
• Ideal for both small and large-scale LED lighting systems.

Wiring & Installation

• Connect the DC input (12–24V) to the power supply terminals.
• Connect LED strips to CH1 and CH2 output terminals.
• Pair with an RF remote by entering receiver learning mode.
• Mount in a dry, ventilated area for optimal performance.

Applications

• Single-color LED strip lighting
• Cove lighting and indirect lighting
• Cabinets, shelves and furniture lighting
• Commercial displays and retail lighting
• Architectural ambient lighting projects
• Any low-voltage LED system requiring strong 2-channel control

Technical Specifications
