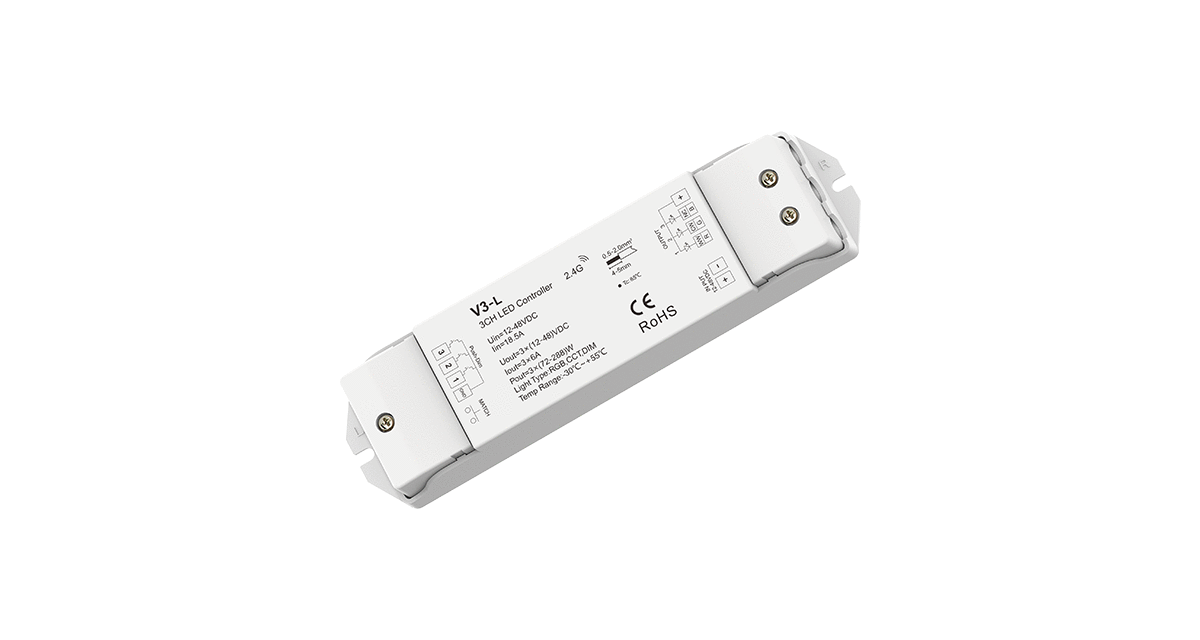

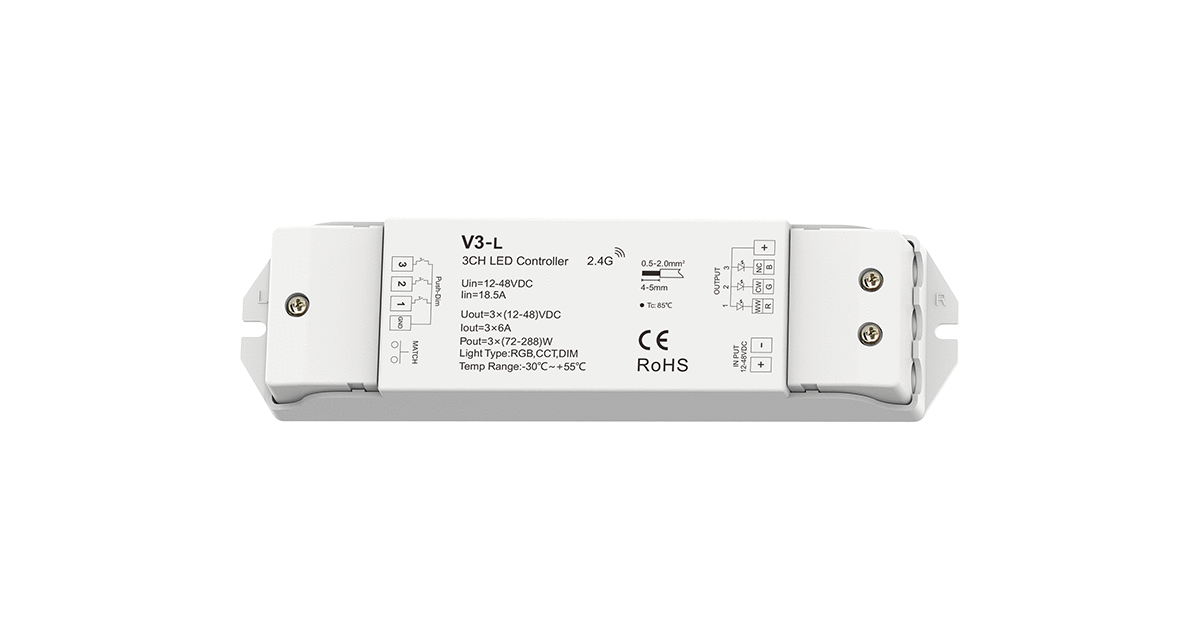

V3-L LED Controller | 3CH 6A 12–48V Push-Dim Constant Voltage

Overview

The V3-L is a high-power 3-channel constant voltage LED controller designed for RGB or multi-channel LED strip applications. With 6A output per channel and an extended 12–48V DC input range, it supports long-length LED strips and demanding lighting installations. The V3-L includes a Push-Dim input for direct wall switch control, along with 2.4G RF compatibility when paired with appropriate remotes. This makes it suitable for residential, commercial and architectural projects requiring flexible dimming and RGB lighting control.

Key Features

• 3 channels × 6A output (RGB or 3-channel LED control)
• Wide input voltage range: 12–48V DC
• Supports large and long LED strip installations
• Push-Dim control via traditional wall switch
• 2.4G RF wireless control compatibility
• Smooth 0–100% PWM dimming
• High-efficiency constant voltage design
• Strong total output capacity for heavy-duty LED loads

Technical Notes

• V3-L can operate as a standalone Push-Dim controller or as an RF receiver.
• Compatible with single-color, RGB or 3-channel LED configurations.
• Push-Dim input allows brightness adjustment with a momentary switch.
• RF mode enables wireless control via 2.4G LED remotes.
• PWM dimming ensures flicker-free performance at all brightness levels.
• Designed for indoor installations in dry environments.

Push-Dim Operation

• Short press: ON/OFF switching
• Long press: Smooth brightness dimming cycle
• Memory function: Restores last brightness level on power-up

Applications

• RGB LED strip control (3-channel)
• High-power architectural and commercial lighting
• Long LED strip runs (thanks to 48V support)
• Cove and indirect lighting
• Furniture, retail displays and ambient lighting
• Mixed installations requiring Push-Dim + RF control

Technical Specifications

Parameter	Specification
Model	V3-L LED Controller
Channels	3 channels × 6A each (18A total)
Input Voltage	12–48V DC constant voltage
Output Type	PWM constant voltage dimming
Control Options	Push-Dim input, 2.4G RF (via remotes)
Functions	RGB color control or 3-channel dimming
Max Output Power	Up to 288W @ 48V / 144W @ 24V / 72W @ 12V per channel
Push-Dim Input	Momentary wall switch
Operating Environment	Indoor use, dry environments
