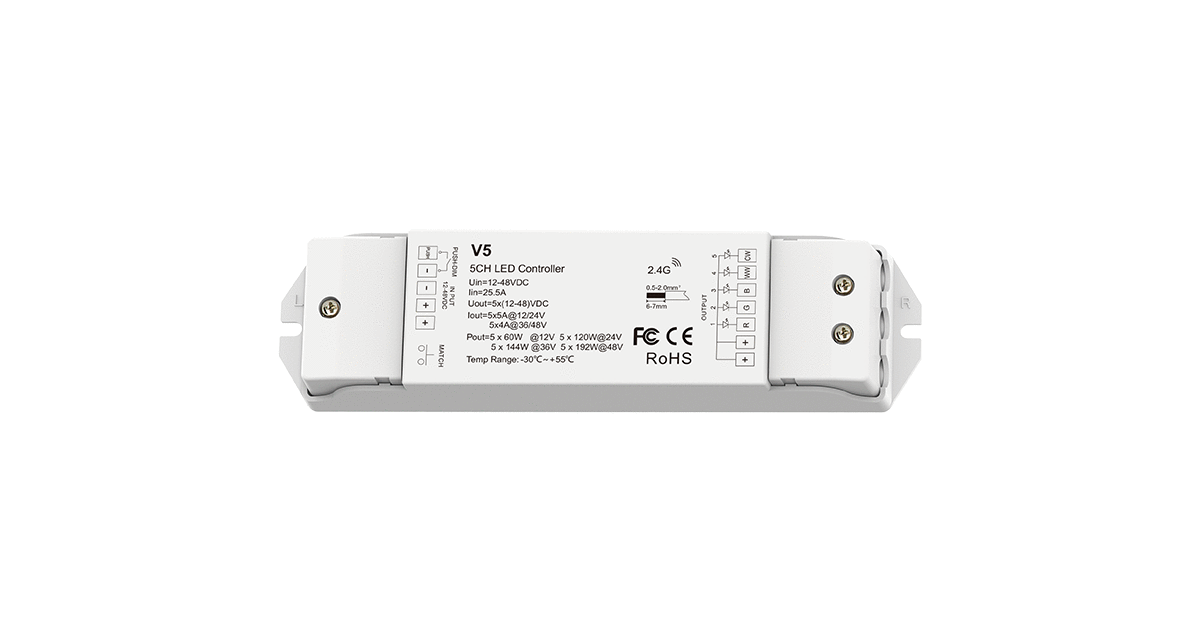

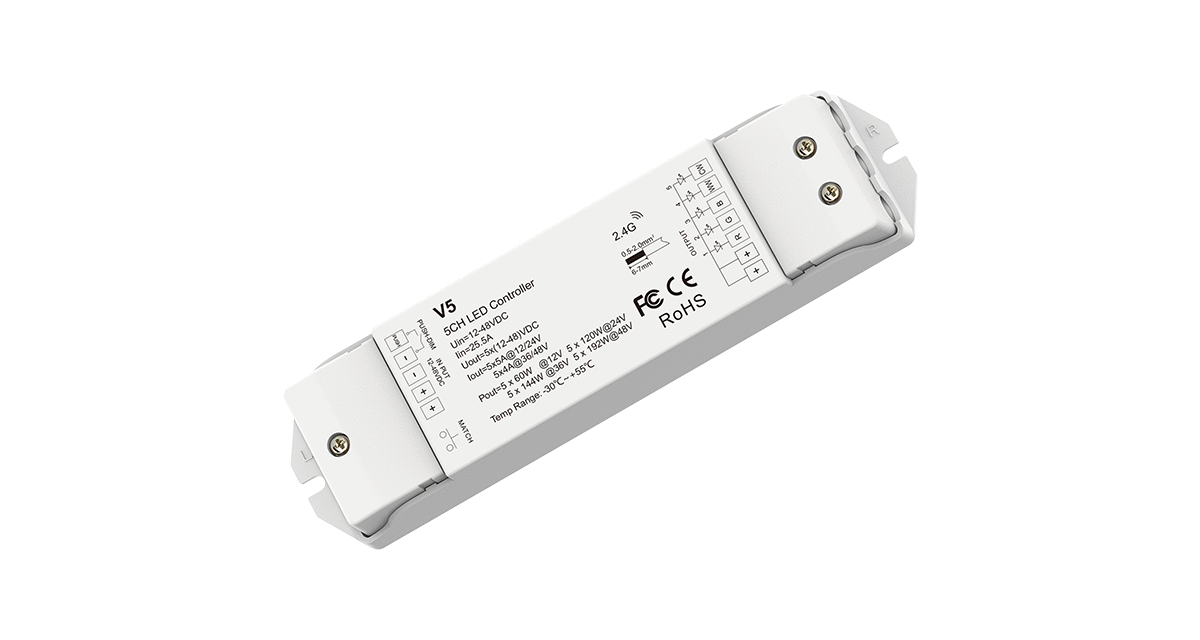

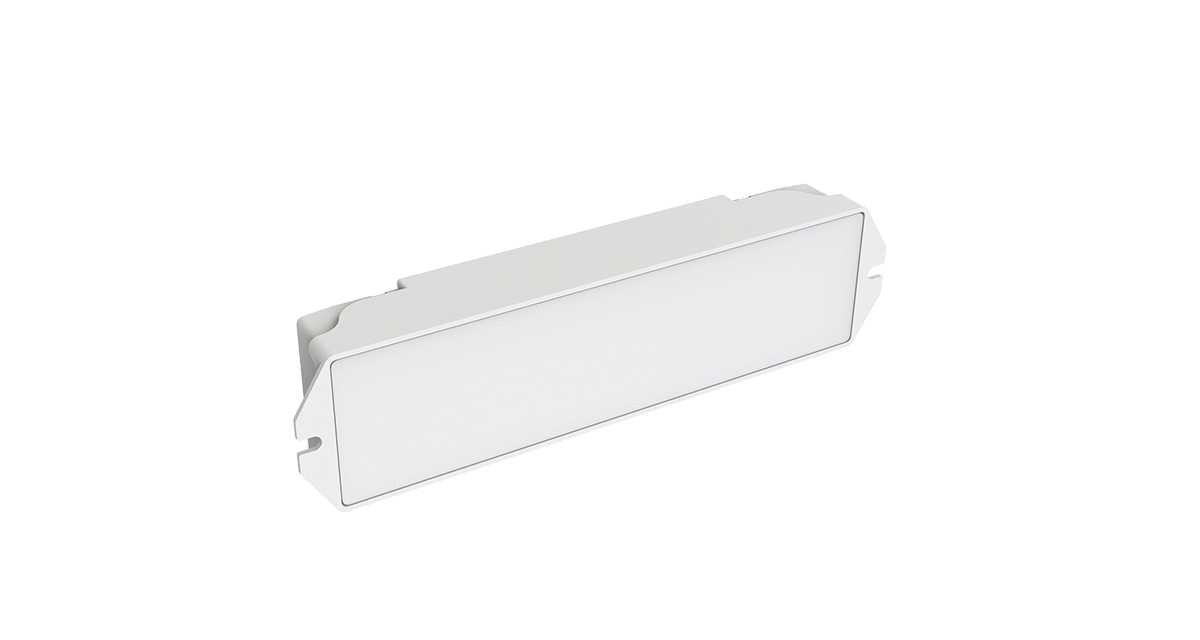

V5 LED Controller | 5CH 5A 12–48V Push-Dim Constant Voltage

Overview

The V5 is a powerful 5-channel constant voltage LED controller designed for RGB+CCT LED strips or any 5-channel low-voltage LED lighting system. With 5A output per channel and a wide 12–48V DC input range, the V5 is suitable for both small and large-scale lighting installations. It supports Push-Dim operation for direct wall-switch control, as well as 2.4G RF wireless control when paired with compatible remotes. This versatility makes the V5 ideal for residential, commercial and architectural projects requiring full-spectrum RGB+CCT lighting.

Key Features

• 5-channel constant voltage output (5×5A)
• Supports RGB+CCT or 5-channel LED systems
• Wide input voltage range: 12–48V DC
• Push-Dim input for traditional wall-switch dimming
• 2.4G RF wireless control compatibility
• Smooth 0–100% PWM dimming
• High power capacity for long LED strip installations
• Memory function restores last brightness and mode

Technical Notes

• V5 can control RGB+CCT strips or act as a 5-channel dimmer driver.
• Push-Dim allows ON/OFF and dimming using a momentary switch.
• RF control enables wireless operation when paired with compatible controllers.
• Designed for indoor installations in dry, ventilated areas.
• PWM dimming ensures flicker-free operation at all levels.

Push-Dim Operation

• Short press: ON/OFF switching
• Long press: Smooth brightness dimming
• Brightness memory: Restores previous level after power loss

Applications

• RGB+CCT full-spectrum LED strip control
• Architectural multi-channel LED systems
• High-power commercial lighting installations
• Residential ambient and decorative lighting
• Cove, ceiling and indirect color-tunable lighting
• Any project requiring 5-channel LED control with Push-Dim

Technical Specifications

Parameter	Specification
Model	V5 LED Controller
Channels	5 channels × 5A (25A total)
Input Voltage	12–48V DC constant voltage
Output Type	PWM constant voltage dimming
Control Options	Push-Dim input & 2.4G RF (via remotes)
Max Output Power	Up to 240W @ 48V / 120W @ 24V / 60W @ 12V per channel
Supported LED Types	RGB+CCT strips, monochrome, dual-white, multi-channel
Push-Dim Input	Momentary wall switch (single-wire)
Operating Environment	Indoor use in dry locations
