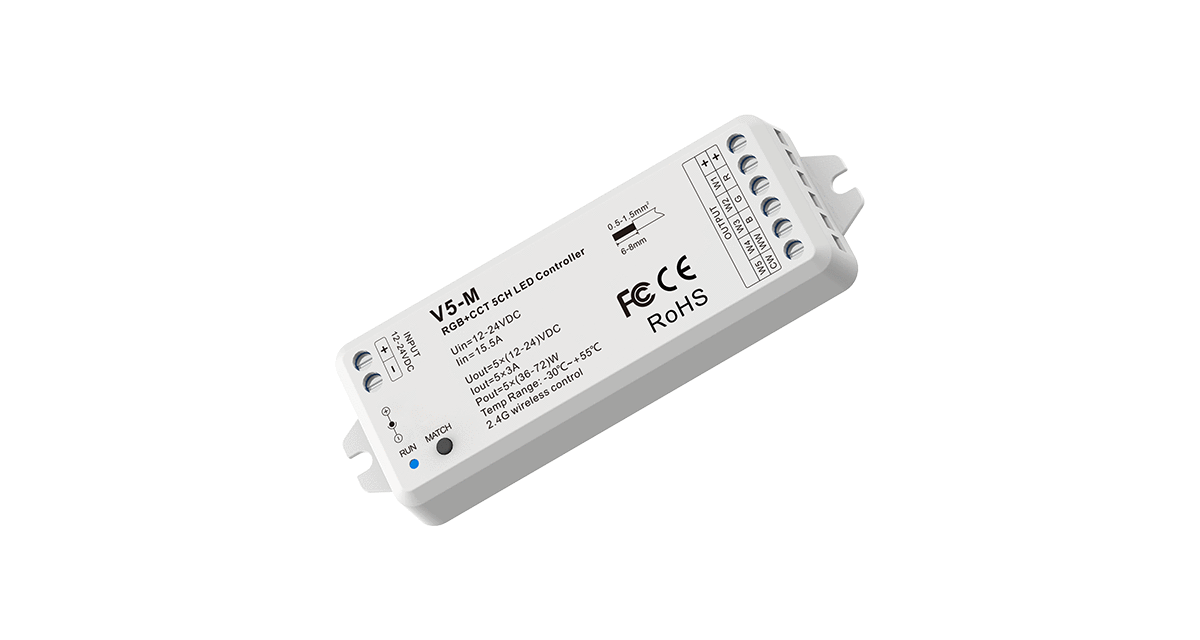

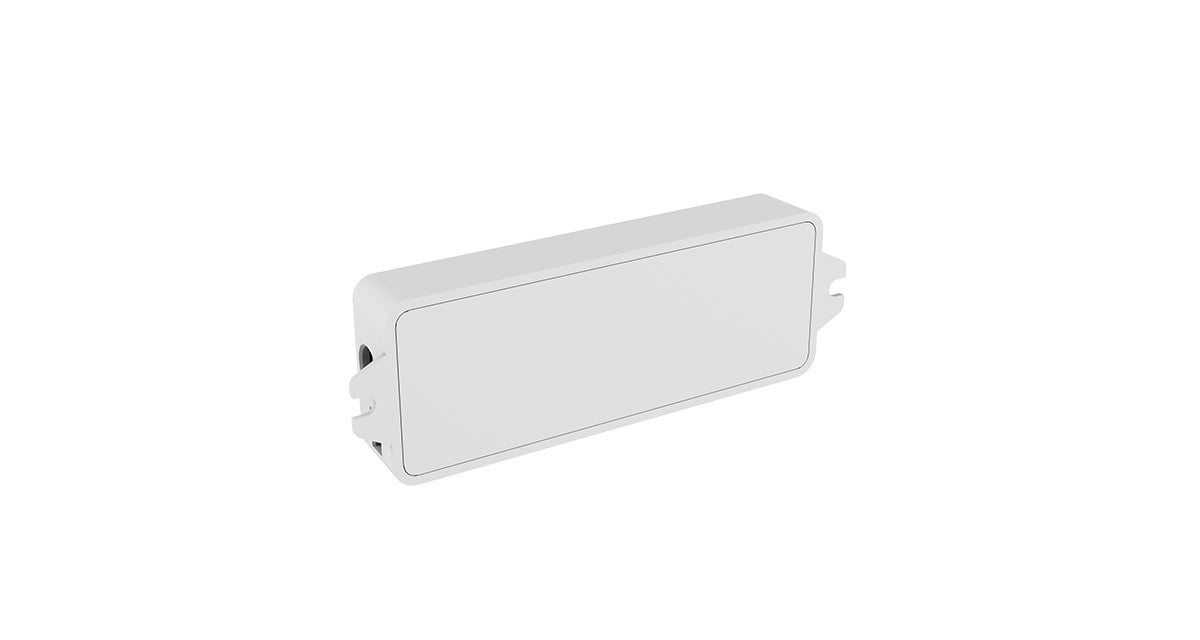

V5-M 5CH LED Controller | 12-24VDC 3A ×5 CV RF Receiver

Overview

The V5-M is a versatile 5-channel constant-voltage RF LED controller designed for RGB, RGBW, RGB+CCT, CCT and single-color LED systems. Operating on 12–24VDC with 3A output per channel, it provides smooth dimming, color adjustment and mode control when paired with compatible 2.4G RF remotes. Ideal for multi-function lighting installations requiring flexible configuration.

Key Features

• 5-channel constant-voltage LED controller
• 3A output per channel (Max 15A total)
• Wide input range: 12–24VDC
• Supports RGB, RGBW, RGB+CCT, CCT and single-color modes
• 2.4G RF wireless control (compatible remotes required)
• Smooth 0–100% dimming and color mixing
• High efficiency and stable PWM output
• Compact design for easy integration

Control Functions

• Mode Selection: RGB / RGBW / RGB+CCT / CCT / Dimmer
• Brightness: 0–100% smooth dimming
• Color Adjustment: RGB mixing, white balance tuning and color temperature control
• Speed / Mode: Control dynamic scenes (depending on remote)
• Zone Compatibility: Works with single- or multi-zone RF remotes

Technical Notes

• Requires a compatible 2.4G RF remote controller.
• Constant-voltage output; designed for 12–24V LED strips.
• Ensure adequate ventilation for full-load operation.
• Supports multiple lighting configurations through user selection.

Applications

• RGB / RGBW / RGB+CCT LED strip installations
• Tunable white (CCT) lighting
• Commercial and retail ambient lighting
• Residential LED lighting automation
• Bars, lounges, hotels and architectural lighting
